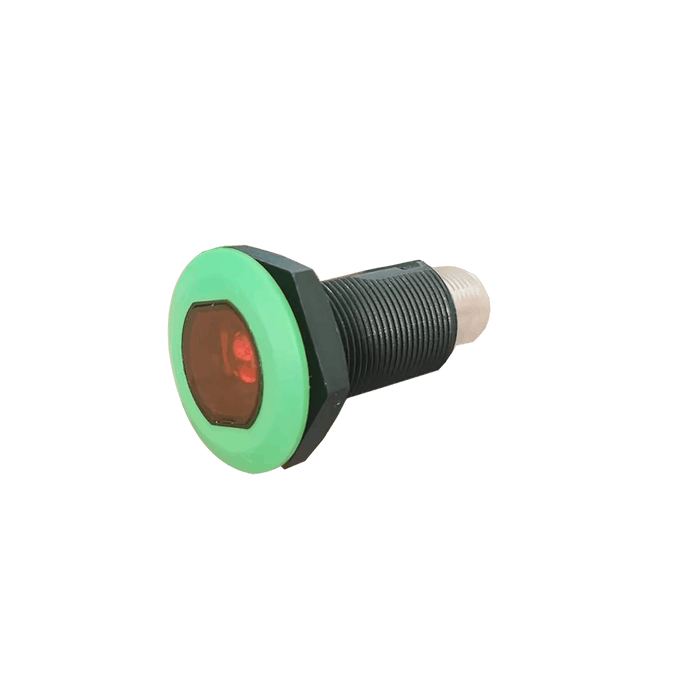

Photoelectric Sensor, OG18-Series, Retro-reflective, Red beam, Operating range 4 m, PNP, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

OG18-RCP6Q

SKU OG18-RCP6Q
by ELCO Industrial Automation

Photoelectric Sensor, OG18-Series, Retro-reflective, Red beam, Operating range 4 m, PNP, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

$37.05 - $37.05
$37.05
$37.05 - $37.05
$37.05
Availability:
In stock

Photoelectric Sensor, OG18-Series, Retro-reflective, Red beam, Operating range 4 m, PNP, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

Specifications

Load current ≤ 200 mA
Connection type M12, 4-pin
Connection Connector
IP rating IP67
Anti-ambient light ≤ 5000 lux
Housing material PBT + ABS
Ambient temperature -25 … +55 ℃
Switching frequency 800 Hz
Detection method Retro-reflective
Sensing range 4 m
Light source Red LED
Output status L.O /

No additional information at this time.

Downloads

CE CE_SP_OG18_V1.0_EN.pdf
Datasheet ELCO_OG18_DataSheet_CN.pdf
Datasheet DS_SP_OG18_V1.0_EN.pdf
3D Drawing CAD_SP_OG18-AP-Q12_V1.0.stp
Manual UM_SP_OG18-R_V1.0_EN&CN.pdf
