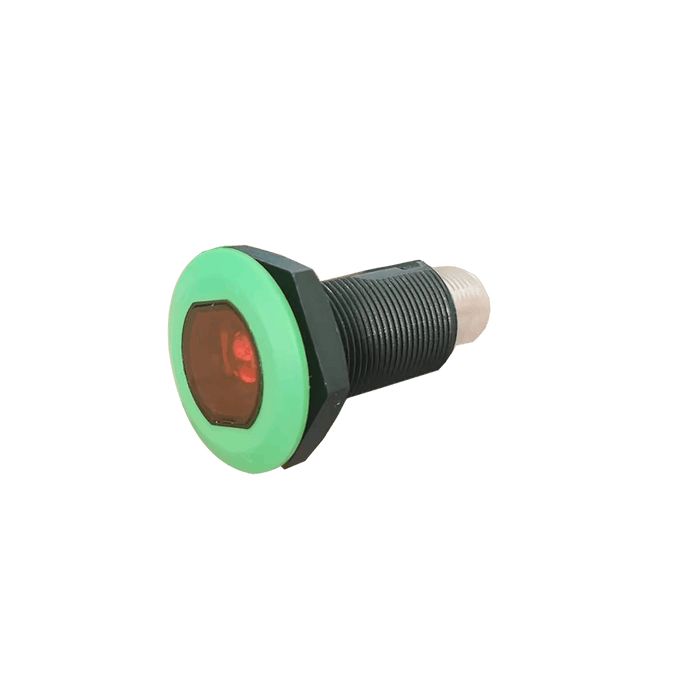

Photoelectric Sensor, OG18-Series, Diffused, Red beam, Operating range 600 mm, PNP, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

OG18-K600CP6Q

SKU OG18-K600CP6Q
by ELCO Industrial Automation

Photoelectric Sensor, OG18-Series, Diffused, Red beam, Operating range 600 mm, PNP, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

$37.05 - $37.05
$37.05
$37.05 - $37.05
$37.05
Availability:
In stock

Photoelectric Sensor, OG18-Series, Diffused, Red beam, Operating range 600 mm, PNP, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

Specifications

Light source Red LED
Spot size 30 mm @ 600 mm
Output type PNP
Output status L.O / D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Sensing range 600 mm
Detection method Diffused
Load current ≤ 200 mA
Anti-ambient light ≤ 5000 lux
Connection Connector
Connection type M12, 4-pin

No additional information at this time.

Downloads

CE CE_SP_OG18_V1.0_EN.pdf
Datasheet ELCO_OG18_DataSheet_CN.pdf
Datasheet DS_SP_OG18_V1.0_EN.pdf
3D Drawing CAD_SP_OG18-AP-Q12_V1.0.stp
Manual UM_SP_OG18-K600_V1.0_EN&CN.pdf
