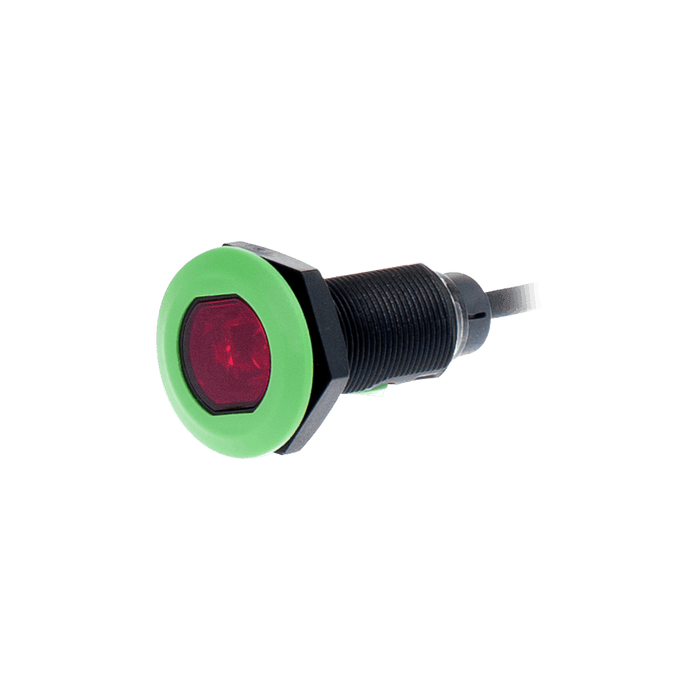

Photoelectric Sensor, OG18-Series, Diffused, Red beam, Operating range 600 mm, PNP, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

OG18-K600CP6

SKU OG18-K600CP6
by ELCO Industrial Automation

Photoelectric Sensor, OG18-Series, Diffused, Red beam, Operating range 600 mm, PNP, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

$37.93 - $37.93
$37.93
$37.93 - $37.93
$37.93
Availability:
In stock

Photoelectric Sensor, OG18-Series, Diffused, Red beam, Operating range 600 mm, PNP, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

Specifications

Connection type 2 m, TPU
Spot size 30 mm @ 600 mm
Output status L.O / D.O
Switching frequency 800 Hz
IP rating IP67
Housing material PBT + ABS
Connection Cable
Load current ≤ 200 mA
Anti-ambient light ≤ 5000 lux
Ambient temperature -25 … +55 ℃
Output type PNP
Light source Red LED

No additional information at this time.

Downloads

CE CE_SP_OG18_V1.0_EN.pdf
Datasheet ELCO_OG18_DataSheet_CN.pdf
Datasheet DS_SP_OG18_V1.0_EN.pdf
3D Drawing CAD_SP_OG18-AP_V1.0.stp
Manual UM_SP_OG18-K600_V1.0_EN&CN.pdf
