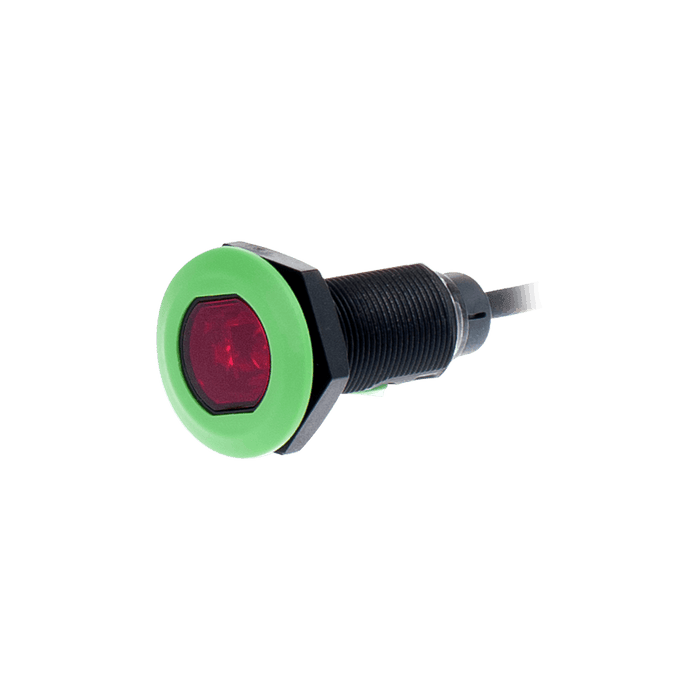

Photoelectric Sensor, OG18-Series, Diffused, Red beam, Operating range 600 mm, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

OG18-K600CN6

SKU OG18-K600CN6
by ELCO Industrial Automation

Photoelectric Sensor, OG18-Series, Diffused, Red beam, Operating range 600 mm, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

$37.93 - $37.93
$37.93
$37.93 - $37.93
$37.93
Availability:
In stock

Photoelectric Sensor, OG18-Series, Diffused, Red beam, Operating range 600 mm, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

Specifications

Connection type 2 m, TPU
Sensing range 600 mm
Light source Red LED
Housing material PBT + ABS
Output status L.O / D.O
IP rating IP67
Connection Cable
Anti-ambient light ≤ 5000 lux
Load current ≤ 200 mA
Ambient temperature -25 … +55 ℃
Output type NPN
Switching frequency 800 Hz

No additional information at this time.

Downloads

CE CE_SP_OG18_V1.0_EN.pdf
Datasheet ELCO_OG18_DataSheet_CN.pdf
Datasheet DS_SP_OG18_V1.0_EN.pdf
3D Drawing CAD_SP_OG18-AP_V1.0.stp
Manual UM_SP_OG18-K600_V1.0_EN&CN.pdf
