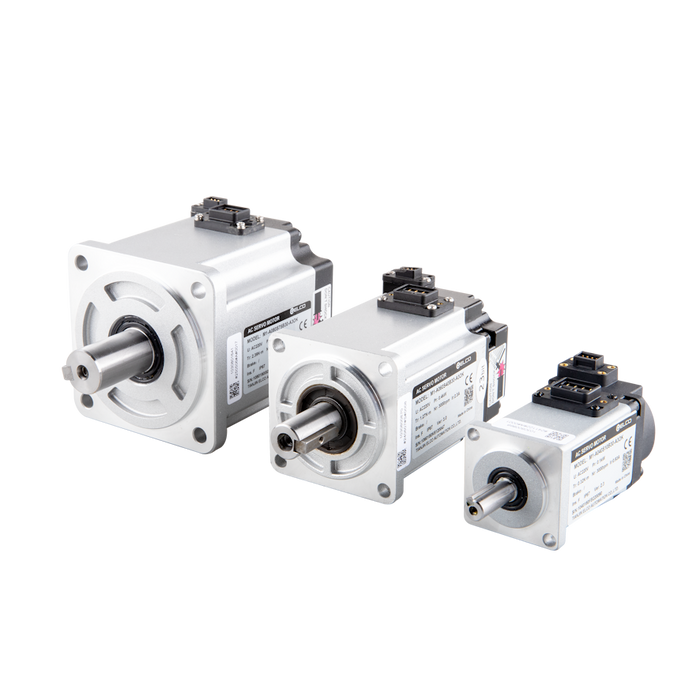

Servo motor, M1 Series, Medium inertia type, 130 flange, Rated power 3 KW, Rated speed 3000 rpm, 23-bit magnetic encoder, Non-brake motor

M1-M130S30C30-A3OK

SKU M1-M130S30C30-A3OK
by ELCO Industrial Automation

Servo motor, M1 Series, Medium inertia type, 130 flange, Rated power 3 KW, Rated speed 3000 rpm, 23-bit magnetic encoder, Non-brake motor

$807.75 - $807.75
$807.75
$807.75 - $807.75
$807.75
Availability:
In stock

Servo motor, M1 Series, Medium inertia type, 130 flange, Rated power 3 KW, Rated speed 3000 rpm, 23-bit magnetic encoder, Non-brake motor

Specifications

Inertia range 15.0 ... 20.0 x 10⁻⁴ kg·m²
IP rating IP65
Encoder resolution 23 bit optical encoder
Rated power 3 KW
Voltage 220 V AC
Flange 130
Rated torque 8.0 ... 20.0 Nm
Maximum torque 20.0 ... 30.0 Nm
Maximum rotational speed 3500 rpm
Brake No
Shaft diameter 22 mm
Rated speed 3000 rpm

No additional information at this time.

Downloads

Datasheet ELCO_M1_Datasheet_CN.pdf
EPLAN Drawing ELCO_M1-M130S30C30-A3OK.edz
