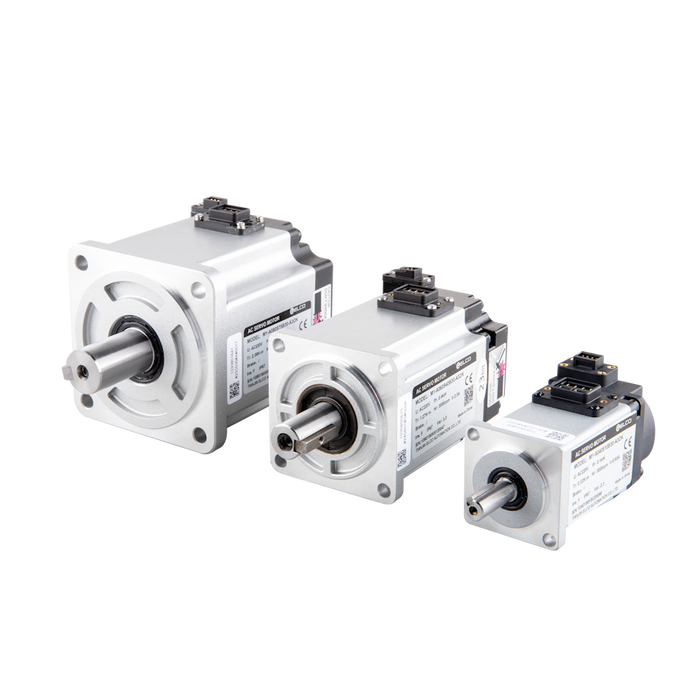

Servo motor, M1 Series, Medium inertia type, 130 flange, Rated power 2 KW, Rated speed 3000 rpm, 17-bit magnetic encoder, With brake motor

M1-M130S20C30-A1BOK

SKU M1-M130S20C30-A1BOK
by ELCO Industrial Automation

Servo motor, M1 Series, Medium inertia type, 130 flange, Rated power 2 KW, Rated speed 3000 rpm, 17-bit magnetic encoder, With brake motor

$808.47 - $808.47
$808.47
$808.47 - $808.47
$808.47
Availability:
In stock

Servo motor, M1 Series, Medium inertia type, 130 flange, Rated power 2 KW, Rated speed 3000 rpm, 17-bit magnetic encoder, With brake motor

Specifications

IP rating IP65
Rated power 2 KW
Shaft diameter 22 mm
Voltage 220 V AC
Inertia range 2.0 ... 15.0 x 10⁻⁴ kg·m²
Flange 130
Rated torque 2.5 ... 8.0 Nm
Maximum torque 10.0 ... 20.0 Nm
Brake Yes
Maximum rotational speed 3500 rpm
Rated speed 3000 rpm
Encoder resolution 17 bit magnetic encoder

No additional information at this time.

Downloads

Datasheet ELCO_M1_Datasheet_CN.pdf
EPLAN Drawing ELCO_M1-M130S20C30-A1BOK.edz
