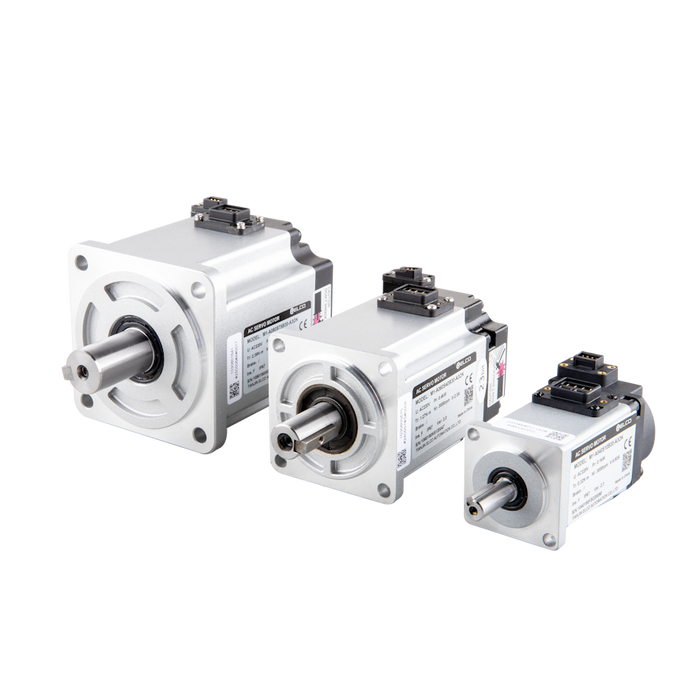

Servo motor, M1 Series, Medium inertia type, 130 flange, Rated power 1.3 KW, Rated speed 1500 rpm, 23-bit magnetic encoder, Non-brake motor

M1-M130S13C15-A3OK

SKU M1-M130S13C15-A3OK
by ELCO Industrial Automation

Servo motor, M1 Series, Medium inertia type, 130 flange, Rated power 1.3 KW, Rated speed 1500 rpm, 23-bit magnetic encoder, Non-brake motor

$655.36 - $655.36
$655.36
$655.36 - $655.36
$655.36
Availability:
In stock

Servo motor, M1 Series, Medium inertia type, 130 flange, Rated power 1.3 KW, Rated speed 1500 rpm, 23-bit magnetic encoder, Non-brake motor

Specifications

Rated speed 1500 rpm
Rated power 1.3 KW
Shaft diameter 22 mm
IP rating IP65
Inertia range 2.0 ... 15.0 x 10⁻⁴ kg·m²
Voltage 220 V AC
Flange 130
Encoder resolution 23 bit optical encoder
Maximum rotational speed 3000 rpm
Brake No
Rated torque 8.0 ... 20.0 Nm
Maximum torque 20.0 ... 30.0 Nm

No additional information at this time.

Downloads

Datasheet ELCO_M1_Datasheet_CN.pdf
EPLAN Drawing ELCO_M1-M130S13C15-A3OK.edz
