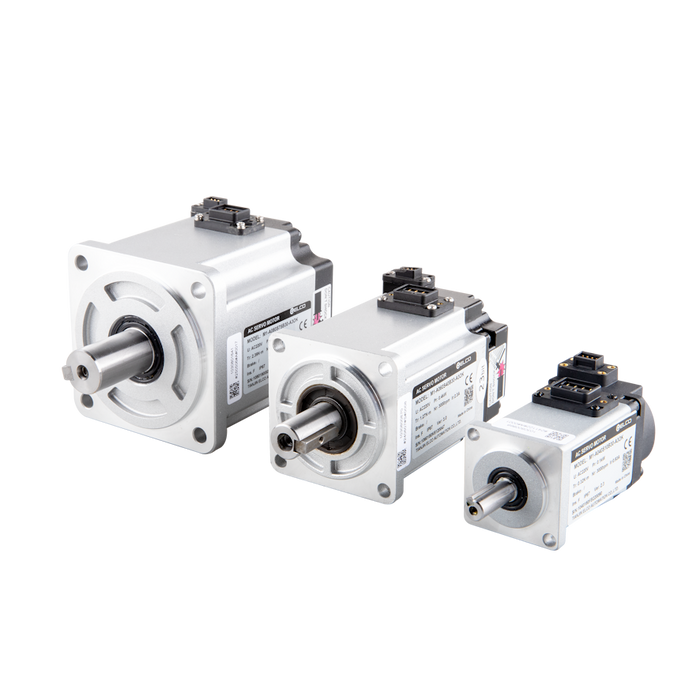

Servo motor, M1 Series, Standard type, 80 flange, Rated power 1 KW, Rated speed 3000 rpm, 23-bit magnetic encoder, With brake motor

M1-A080S10C30-A3BOK

SKU M1-A080S10C30-A3BOK
by ELCO Industrial Automation

Servo motor, M1 Series, Standard type, 80 flange, Rated power 1 KW, Rated speed 3000 rpm, 23-bit magnetic encoder, With brake motor

$372.04 - $372.04
$372.04
$372.04 - $372.04
$372.04
Availability:
In stock

Servo motor, M1 Series, Standard type, 80 flange, Rated power 1 KW, Rated speed 3000 rpm, 23-bit magnetic encoder, With brake motor

Specifications

Rated speed 3000 rpm
IP rating IP65
Rated power 1 KW
Voltage 220 V AC
Shaft diameter 19 mm
Inertia range 2.0 ... 15.0 x 10⁻⁴ kg·m²
Flange 80
Encoder resolution 23 bit optical encoder
Maximum rotational speed 5000 rpm
Brake Yes
Rated torque 2.5 ... 8.0 Nm
Maximum torque <= 10 Nm

No additional information at this time.

Downloads

Datasheet ELCO_M1_Datasheet_CN.pdf
EPLAN Drawing ELCO_M1-A080S10C30-A3BOK.edz
