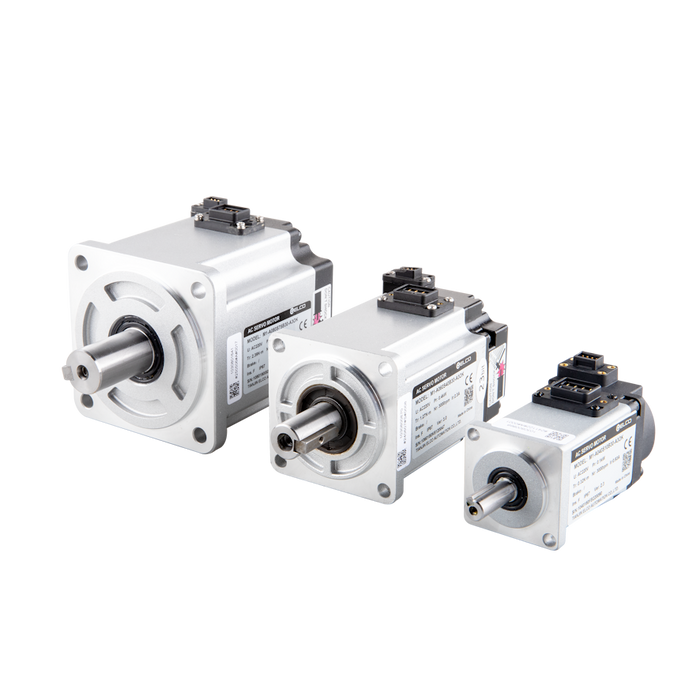

Servo motor, M1 Series, Standard type, 80 flange, Rated power 1 KW, Rated speed 3000 rpm, 17-bit magnetic encoder, Non-brake motor

M1-A080S10C30-A1OK

SKU M1-A080S10C30-A1OK
by ELCO Industrial Automation

Servo motor, M1 Series, Standard type, 80 flange, Rated power 1 KW, Rated speed 3000 rpm, 17-bit magnetic encoder, Non-brake motor

$284.04 - $284.04
$284.04
$284.04 - $284.04
$284.04
Availability:
In stock

Servo motor, M1 Series, Standard type, 80 flange, Rated power 1 KW, Rated speed 3000 rpm, 17-bit magnetic encoder, Non-brake motor

Specifications

Rated speed 3000 rpm
IP rating IP65
Rated power 1 KW
Shaft diameter 19 mm
Voltage 220 V AC
Inertia range <= 2.0 x 10⁻⁴ kg·m²
Flange 80
Encoder resolution 17 bit magnetic encoder
Maximum rotational speed 5000 rpm
Rated torque 2.5 ... 8.0 Nm
Brake No
Maximum torque <= 10 Nm

No additional information at this time.

Downloads

Datasheet ELCO_M1_Datasheet_CN.pdf
EPLAN Drawing ELCO_M1-A080S10C30-A1OK.edz
