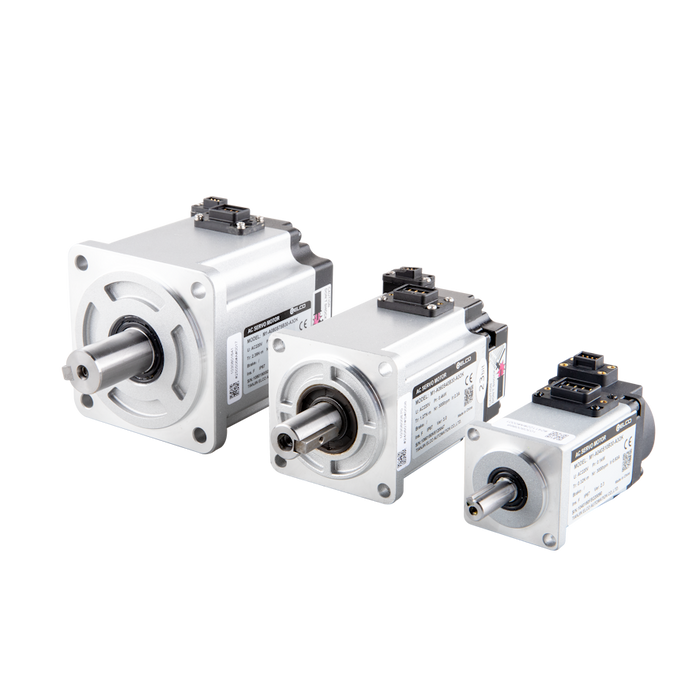

Servo motor, M1 Series, Standard type, 60 flange, Rated power 400 W, Rated speed 3000 rpm, 23-bit magnetic encoder, Non-brake motor

M1-A060S40B30-A3OK

SKU M1-A060S40B30-A3OK
by ELCO Industrial Automation

Servo motor, M1 Series, Standard type, 60 flange, Rated power 400 W, Rated speed 3000 rpm, 23-bit magnetic encoder, Non-brake motor

$249.69 - $249.69
$249.69
$249.69 - $249.69
$249.69
Availability:
In stock

Servo motor, M1 Series, Standard type, 60 flange, Rated power 400 W, Rated speed 3000 rpm, 23-bit magnetic encoder, Non-brake motor

Specifications

Rated speed 3000 rpm
IP rating IP65
Rated power 0.4 KW
Shaft diameter 14 mm
Voltage 220 V AC
Inertia range <= 2.0 x 10⁻⁴ kg·m²
Flange 60
Encoder resolution 23 bit optical encoder
Maximum rotational speed 5000 rpm
Rated torque <= 2.5 Nm
Maximum torque <= 10 Nm
Brake No

No additional information at this time.

Downloads

Datasheet ELCO_M1_Datasheet_CN.pdf
EPLAN Drawing ELCO_M1-A060S40B30-A3OK.edz
