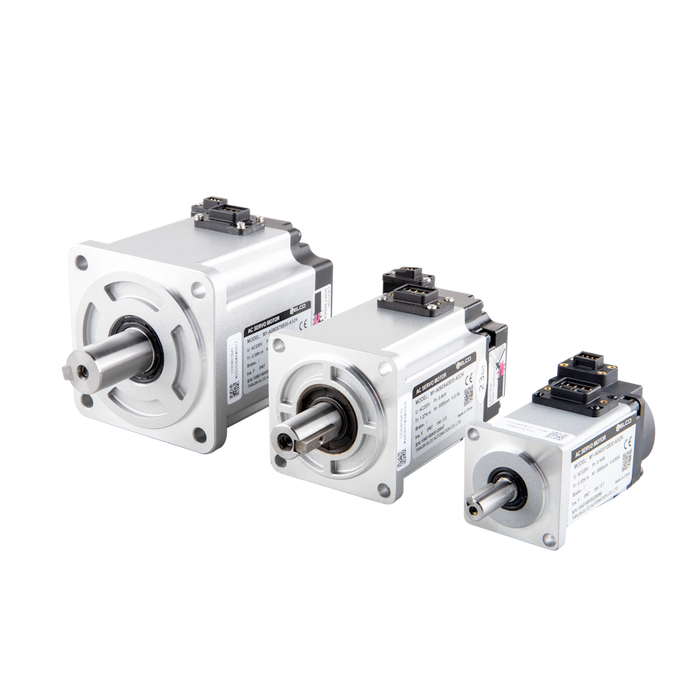

Servo motor, M1 Series, Standard type, 60 flange, Rated power 400 W, Rated speed 3000 rpm, 17-bit magnetic encoder, Non-brake motor

M1-A060S40B30-A1OK

SKU M1-A060S40B30-A1OK
by ELCO Industrial Automation

Servo motor, M1 Series, Standard type, 60 flange, Rated power 400 W, Rated speed 3000 rpm, 17-bit magnetic encoder, Non-brake motor

$186.73 - $186.73
$186.73
$186.73 - $186.73
$186.73
Availability:
In stock

Servo motor, M1 Series, Standard type, 60 flange, Rated power 400 W, Rated speed 3000 rpm, 17-bit magnetic encoder, Non-brake motor

Specifications

IP rating IP65
Rated power 0.4 KW
Shaft diameter 14 mm
Voltage 220 V AC
Inertia range <= 2.0 x 10⁻⁴ kg·m²
Flange 60
Maximum rotational speed 5000 rpm
Rated torque <= 2.5 Nm
Maximum torque <= 10 Nm
Brake No
Rated speed 3000 rpm
Encoder resolution 17 bit magnetic encoder

No additional information at this time.

Downloads

Datasheet ELCO_M1_Datasheet_CN.pdf
EPLAN Drawing ELCO_M1-A060S40B30-A1OK.edz
