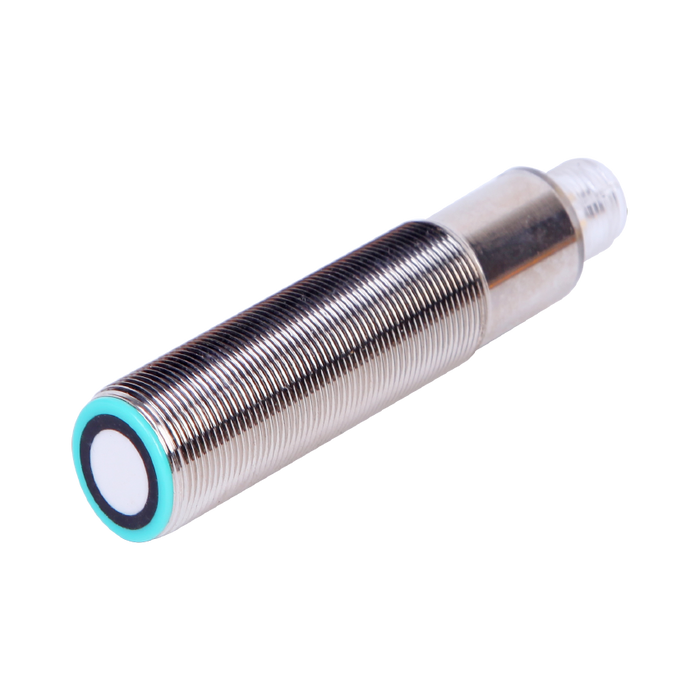

Ultrasonic Sensor, G18-Series, Diffused, Operating range 60…1000 mm, Resolution 0.5 mm, Analog 4...20 mA, 15…30 V DC, -25…70 °C, Switching frequency 20 Hz, IP67, M12 4-pole

UKS1000-G18-LI7L-Q12

SKU UKS1000-G18-LI7L-Q12
by ELCO Industrial Automation

Ultrasonic Sensor, G18-Series, Diffused, Operating range 60…1000 mm, Resolution 0.5 mm, Analog 4...20 mA, 15…30 V DC, -25…70 °C, Switching frequency 20 Hz, IP67, M12 4-pole

$276.98 - $276.98
$276.98
$276.98 - $276.98
$276.98
Availability:
In stock

Ultrasonic Sensor, G18-Series, Diffused, Operating range 60…1000 mm, Resolution 0.5 mm, Analog 4...20 mA, 15…30 V DC, -25…70 °C, Switching frequency 20 Hz, IP67, M12 4-pole

Specifications

External dimensions M18 x 1
Product size M18 x 89.5 mm
Output status 4 ... 20 mA
Supply voltage 15 ... 30 V DC
IP rating IP65
Output type Analog
Connection M12, 4-pin
Ambient temperature -25 … +70 ℃
Sensing range 60 ... 1000 mm
Housing material Nickel-plated brass
Switching frequency 10 Hz

No additional information at this time.

Downloads

CE CE_SU_Ultrasonic-Sensors_V1.0_EN.pdf
Datasheet ELCO_超声波-G18_DataSheet_CN.pdf
Datasheet DS_UKS_M18_V1.0_EN.pdf
3D Drawing CAD_SU_UKS1000-G18-Q12_V1.0.stp
Manual UM_SU_UKS1000-G18-ANALOG_V1.0_EN&CN.pdf
