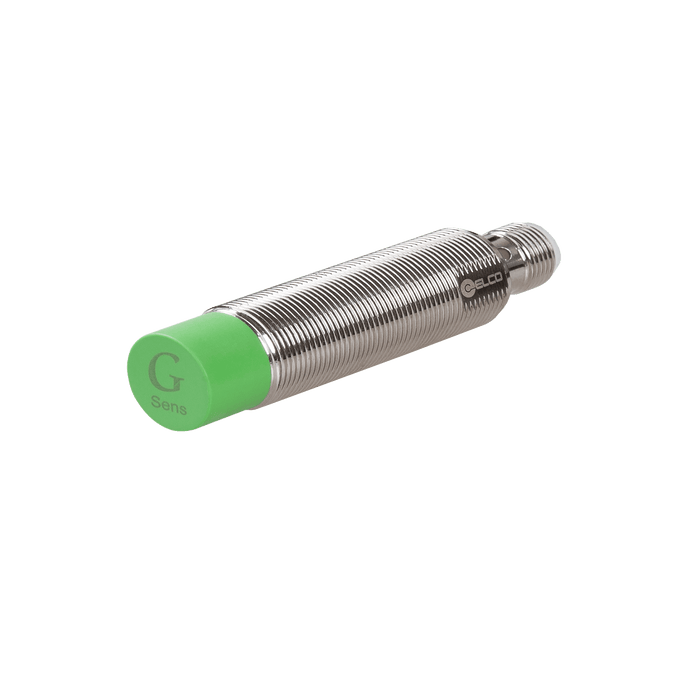

Inductive Sensor, Threaded cylindrical housing M18, Switching distance 20 mm, Non-flush, IP68, -25…70 °C, NPN NC, M12 connector

NI20-G18-CN6L-Q12

SKU NI20-G18-CN6L-Q12
by ELCO Industrial Automation

Inductive Sensor, Threaded cylindrical housing M18, Switching distance 20 mm, Non-flush, IP68, -25…70 °C, NPN NC, M12 connector

$33.12 - $33.12
$33.12
$33.12 - $33.12
$33.12
Availability:
In stock

Inductive Sensor, Threaded cylindrical housing M18, Switching distance 20 mm, Non-flush, IP68, -25…70 °C, NPN NC, M12 connector

Specifications

Sensing range 20 mm
Mounting Non-flush
Connection M12, 4-pin
Housing material Nickel-plated brass
Sensing surface material PBT
Switching frequency 200 Hz
Supply voltage 10 ... 30 V DC
Ambient temperature -30 … +85 ℃
Load current ≤ 200 mA
Output status NC
Output type NPN
External dimensions M18

No additional information at this time.

Downloads

CE CE_SI_Metal-Housing_V1.0_EN.pdf
Datasheet ELCO_G系列_DataSheet_CN.pdf
Datasheet DS_SI_G3-18_V1.1_EN.pdf
3D Drawing CAD_SI_G18-N-DPN-Q12_V1.0.stp
Manual UM_SI_Inductive_V1.0_EN&CN.pdf
