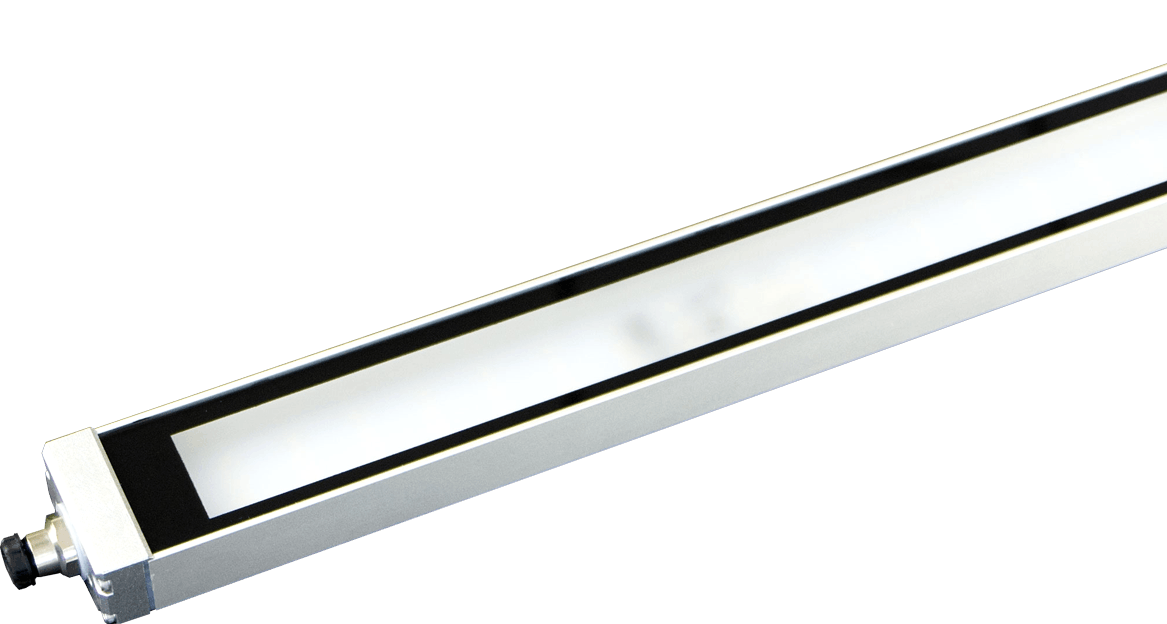

Machine lights, 12.4 W, 5700 K daylight white, 82°, 1000 lm, 24 V AC/DC, M12 plug 4-pin, -20 … +50 °C, IP67, Cascadable

Specifications

Width 48 mm
Light body length 400 mm
Light colour 5700 K daylight white
Rated operational voltage 24 V AC/DC
Current 0.52 A
Power 12.4 W
Luminous flux 1000 lm
LED source type Non-lens
Beam angle 82°
Housing material Aluminium alloy
Window Frosted glass
Connection M12 plug 4-pin
Cascadable Ye

No additional information at this time.

Downloads

CE SELF-CE_ML_LF48_V1.0_EN.pdf
Datasheet DS_ML_LF48W400-M_V1.0_EN.pdf
3D Drawing CAD_ML_LF48W400_V1.0.stp
Manual UM_ML_LF48_V1.0_EN.pdf
