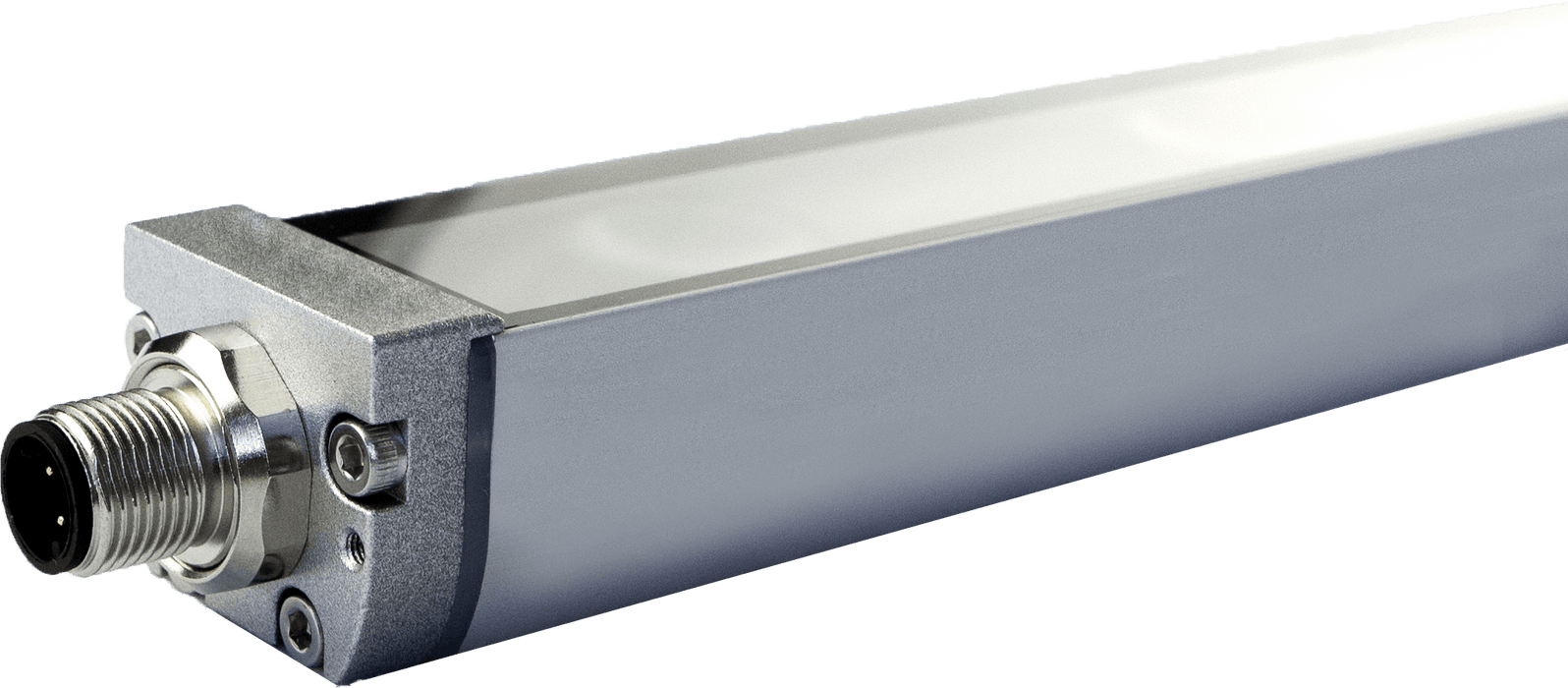

Machine lights, 20.5 W, 5700 K daylight white, 38°, 1750 lm, 24 V AC/DC, M12 plug 4-pin, -20 … +50 °C, IP65, Cascadable

Specifications

Width 32 mm
Light body length 750 mm
Light colour 5700 K daylight white
Rated operational voltage 24 V AC/DC
Current 0.85 A
Power 20.5 W
Luminous flux 1750 lm
LED source type Lens type
Beam angle 38°
Housing material Aluminium alloy
Window Transparent glass
Connection M12 plug 4-pin

No additional information at this time.

Downloads

CE SELF-CE_ML_LF32_V1.0_EN.pdf
Datasheet DS_ML_LF32W750L60-C_V1.0_EN.pdf
3D Drawing CAD_ML_LF32W750-C_V1.0.stp
Manual UM_ML_LF32-24VDC_V1.0_EN.pdf
