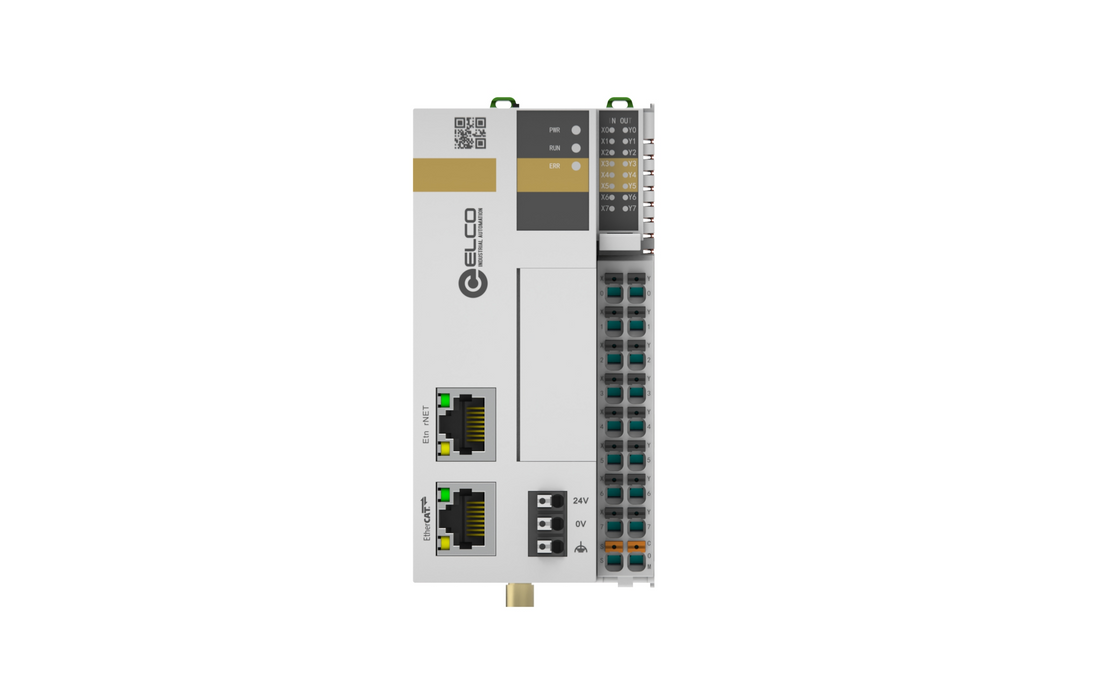

Motion Controller, Logic X3 Series, Interface 1: RJ45 Interface for EtherNet, Support ModbusTCP, OPCUA, Socket communication, Interface 2: EtherCAT mAster , Interface 3: RS-232+RS-485, 8DI (4HDI)+8DO(4HDO) (NPN), Max 24 axes on EtherCAT and 4 axes by pulse , Ability of axis : 8axes@1 ms , 24axes@4ms

Logic X3-424N311

SKU Logic X3-424N311
by ELCO Industrial Automation

Motion Controller, Logic X3 Series, Interface 1: RJ45 Interface for EtherNet, Support ModbusTCP, OPCUA, Socket communication, Interface 2: EtherCAT mAster , Interface 3: RS-232+RS-485, 8DI (4HDI)+8DO(4HDO) (NPN), Max 24 axes on EtherCAT and 4 axes by pulse , Ability of axis : 8axes@1 ms , 24axes@4ms

$1,704.52 - $1,704.52
$1,704.52
$1,704.52 - $1,704.52
$1,704.52
Availability:
In stock

Motion Controller, Logic X3 Series, Interface 1: RJ45 Interface for EtherNet, Support ModbusTCP, OPCUA, Socket communication, Interface 2: EtherCAT mAster , Interface 3: RS-232+RS-485, 8DI (4HDI)+8DO(4HDO) (NPN), Max 24 axes on EtherCAT and 4 axes by pulse , Ability of axis : 8axes@1 ms , 24axes@4ms

Specifications

Communication protocol EtherCAT, ModbusRTU, ModbusTCP, Socket, OPC UA
Pulse-Axis quantity 4
Motion time 1 ms 16 axis synchronization, 4 ms 32 axis synchronization
Software Codesys
Library Part1, Part2, Part4
Number of channels 8 DI, 8 DO
High-speed IO Support
Output type NPN
Firmware version 3.5.19;

No additional information at this time.

Downloads

CE ELCO_Logic X3_CE.pdf
Datasheet ELCO_LogicX1&X3_Datasheet_EN.pdf
Datasheet ELCO_LogicX1&X3_Datasheet_CN.pdf
EPLAN Drawing ELCO_LOGIC X3-424N311.edz
Configuration file ELCO_LogicX3_v1.15.zip
