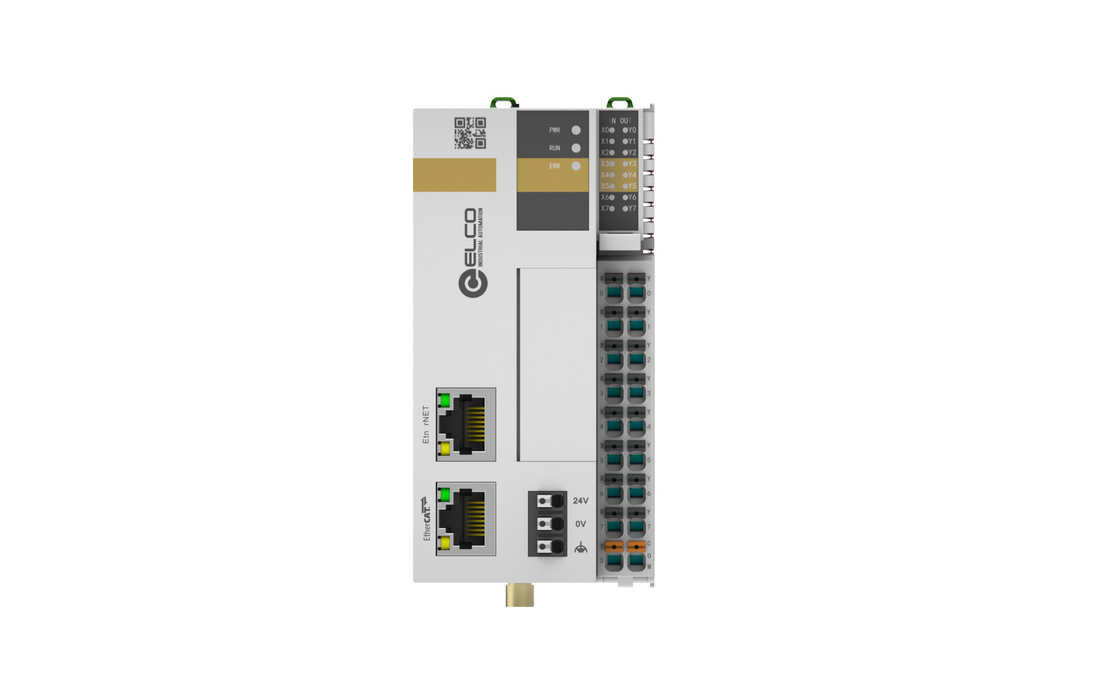

Motion Controller, Logic X3 Series, Interface 1: RJ45 Interface for EtherNet, Support ModbusTCP, OPCUA, Socket communication, Interface 2: EtherCAT mAster , Interface 3: RS-232+RS-485, 8DI (4HDI)+8DO (NPN), Max 32 axes on EtherCAT , Ability of axis : 16axes@1 ms , 32axes@4ms

Logic X3-032P301

SKU Logic X3-032P301
by ELCO Industrial Automation

Motion Controller, Logic X3 Series, Interface 1: RJ45 Interface for EtherNet, Support ModbusTCP, OPCUA, Socket communication, Interface 2: EtherCAT mAster , Interface 3: RS-232+RS-485, 8DI (4HDI)+8DO (NPN), Max 32 axes on EtherCAT , Ability of axis : 16axes@1 ms , 32axes@4ms

$2,037.22 - $2,037.22
$2,037.22
$2,037.22 - $2,037.22
$2,037.22
Availability:
In stock

Motion Controller, Logic X3 Series, Interface 1: RJ45 Interface for EtherNet, Support ModbusTCP, OPCUA, Socket communication, Interface 2: EtherCAT mAster , Interface 3: RS-232+RS-485, 8DI (4HDI)+8DO (NPN), Max 32 axes on EtherCAT , Ability of axis : 16axes@1 ms , 32axes@4ms

Specifications

EC-Axis quantity 32
Pulse-Axis quantity 0
Serial data interface RS-485, RS-232
IP rating IP20
Motion time 1 ms 16 axis synchronization, 4 ms 32 axis synchronization
Software Codesys
Library Part1, Part2, Part4
Number of channels 8 DI, 8 DO
High-speed IO None
Output type PNP
Firmware version 3.5.

No additional information at this time.

Downloads

CE ELCO_Logic X3_CE.pdf
Datasheet ELCO_LogicX1&X3_Datasheet_EN.pdf
Datasheet ELCO_LogicX1&X3_Datasheet_CN.pdf
EPLAN Drawing ELCO_LOGIC X3-032P301.edz
Configuration file ELCO_LogicX3_v1.15.zip
