Motion Controller, Logic X3 Series, Interface 1: RJ45 Interface for EtherNet, Support ModbusTCP, OPCUA, Socket communication, Interface 2: EtherCAT mAster , Interface 3: RS-232+RS-485, 8DI (4HDI)+8DO (NPN), Max 24 axes on EtherCAT , Ability of axis : 8axes@1 ms , 24axes@4ms

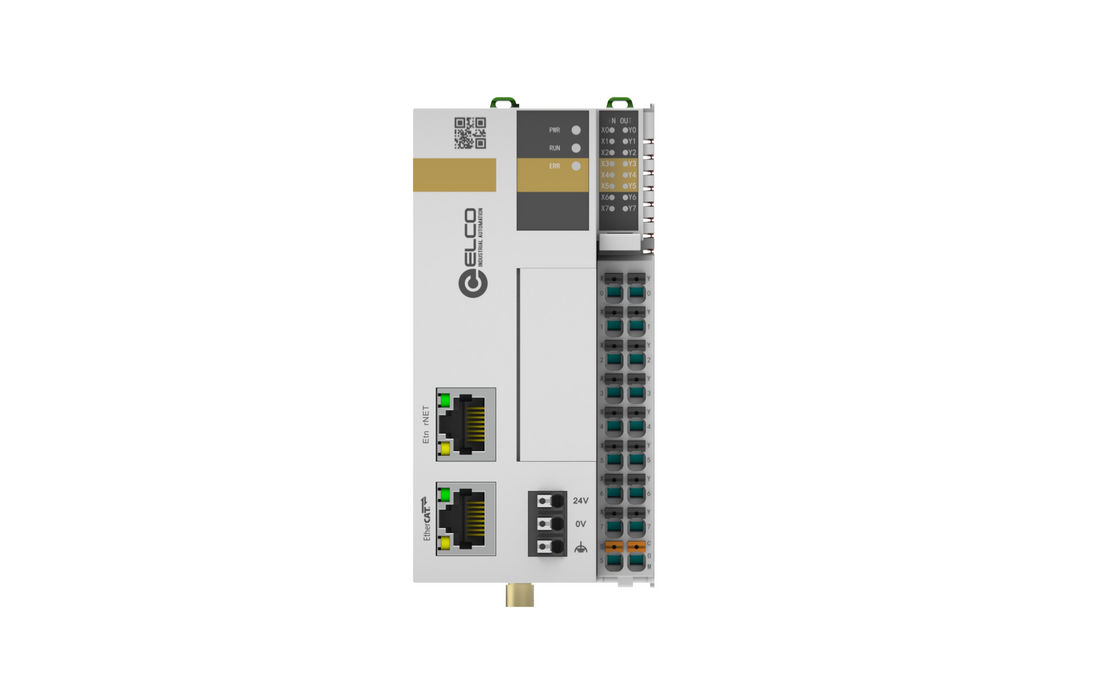

Logic X3-024P301

SKU Logic X3-024P301
by ELCO Industrial Automation

Motion Controller, Logic X3 Series, Interface 1: RJ45 Interface for EtherNet, Support ModbusTCP, OPCUA, Socket communication, Interface 2: EtherCAT mAster , Interface 3: RS-232+RS-485, 8DI (4HDI)+8DO (NPN), Max 24 axes on EtherCAT , Ability of axis : 8axes@1 ms , 24axes@4ms

$1,603.06 - $1,603.06
$1,603.06
$1,603.06 - $1,603.06
$1,603.06
Availability:
In stock

Motion Controller, Logic X3 Series, Interface 1: RJ45 Interface for EtherNet, Support ModbusTCP, OPCUA, Socket communication, Interface 2: EtherCAT mAster , Interface 3: RS-232+RS-485, 8DI (4HDI)+8DO (NPN), Max 24 axes on EtherCAT , Ability of axis : 8axes@1 ms , 24axes@4ms

Specifications

EC-Axis quantity 24
Pulse-Axis quantity 0
IP rating IP20
Motion time 1 ms 16 axis synchronization, 4 ms 32 axis synchronization
Software Codesys
Library Part1, Part2, Part4
Number of channels 8 DI, 8 DO
High-speed IO None
Output type PNP
Firmware version 3.5.19
Hardware version V1.1

No additional information at this time.

Downloads

CE ELCO_Logic X3_CE.pdf
Datasheet ELCO_LogicX1&X3_Datasheet_EN.pdf
Datasheet ELCO_LogicX1&X3_Datasheet_CN.pdf
EPLAN Drawing ELCO_LOGIC X3-024P301.edz
Configuration file ELCO_LogicX3_v1.15.zip
