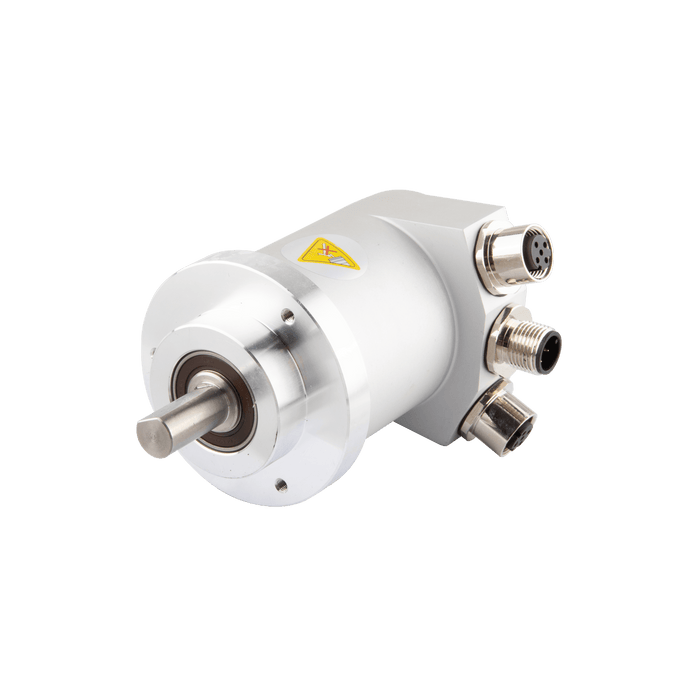

Absolute multiturn magnetic encoder, Series EAM58-ECOM, 36 mm clamping flange, Shaft length 20 mm, Shaft 10g6 mm, 10...30 VDC, EtherCAT interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

EAM58C10-BF6XTR-4096/8192ECOM

SKU EAM58C10-BF6XTR-4096/8192ECOM
by ELCO Industrial Automation

Absolute multiturn magnetic encoder, Series EAM58-ECOM, 36 mm clamping flange, Shaft length 20 mm, Shaft 10g6 mm, 10...30 VDC, EtherCAT interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

$676.71 - $676.71
$676.71
$676.71 - $676.71
$676.71
Availability:
In stock

Absolute multiturn magnetic encoder, Series EAM58-ECOM, 36 mm clamping flange, Shaft length 20 mm, Shaft 10g6 mm, 10...30 VDC, EtherCAT interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

Specifications

Flange type Clamping flange
Housing diameter 90 mm
IP rating IP65
Shaft type Solid shaft
Shaft diameter 10 mm
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.8 x 10-6 kgm2
Starting torque ＜ 0.05 N·m
Shock resistance 50 g, 11 ms

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAM58-ECOM_V1.0_EN.pdf
3D Drawing CAD_E_EAM58C10-BF6XTR-xxxx-xxxxECOM_V1.0.stp
Manual UM_E_EAM58-ECOM_V1.1_EN&CN.pdf
Configuration file Config_E_EAM58-ECND(ECOM)_V1.0.zip
