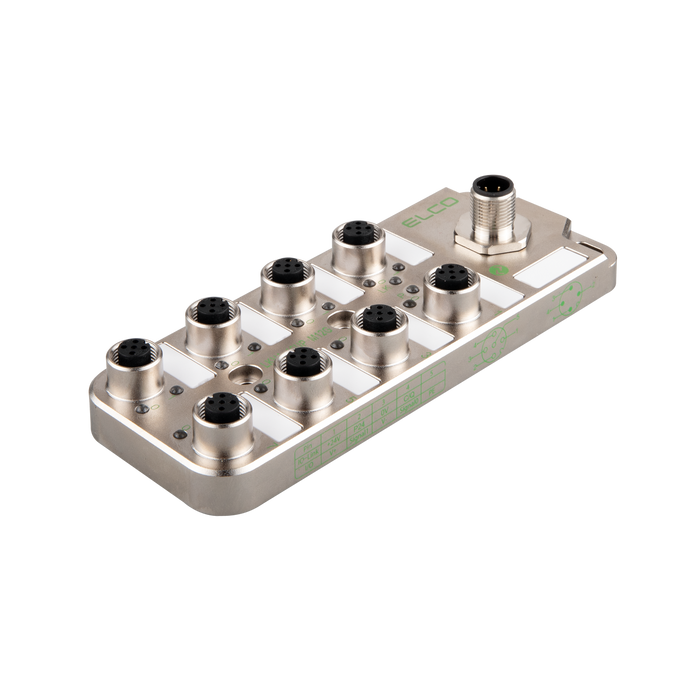

IO-Link Sensor Hub, V1.1.3, Class-A, M12 A-Code 4-pin IO-Link connector, 8 x M12 A-code 5-pin, 16 DI/DO, PNP, 24 V DC, Metal housing, IP67

LKHA-16UP-M12G

SKU LKHA-16UP-M12G
by ELCO Industrial Automation

IO-Link Sensor Hub, V1.1.3, Class-A, M12 A-Code 4-pin IO-Link connector, 8 x M12 A-code 5-pin, 16 DI/DO, PNP, 24 V DC, Metal housing, IP67

$162.11 - $162.11
$162.11
$162.11 - $162.11
$162.11
Availability:
In stock

IO-Link Sensor Hub, V1.1.3, Class-A, M12 A-Code 4-pin IO-Link connector, 8 x M12 A-code 5-pin, 16 DI/DO, PNP, 24 V DC, Metal housing, IP67

Specifications

Storage temperature -40 ... +85 °C
Communication protocol IO-Link
IP rating IP67
Housing material Die-cast Zinc
Fieldbus connection 1 x M12 A-Code
Power supply 18 ... 30 V DC
Signal connection 8 x M12 A-Code
Number of channels 16 DI/DO
Input type PNP
Output type PNP
Dimensions 55 x 145 x 27 mm

No additional information at this time.

Downloads

CE CE_AD_LKH-IP67_V1.0_EN.pdf
MTTF MTTF_AD_LKHA-16UP-M12G_V1.0_EN.pdf
Datasheet DS_AD_LKHA-16UP-M12G_V1.0_EN.pdf
3D Drawing CAD_AD_LKHA-M12G_V1.0.stp
EPLAN Drawing ELCO.LKHA-16UP-M12G.edz
Manual UM_AD_LKHA-16UP-M12G_V1..0_EN.pdf
Configuration application Software_AD_AOI-LKHA-16UP-M12G_V1.0_EN.L5X
Configuration file Config_AD_LKHA-16UP-M12G_V1.0.zip
