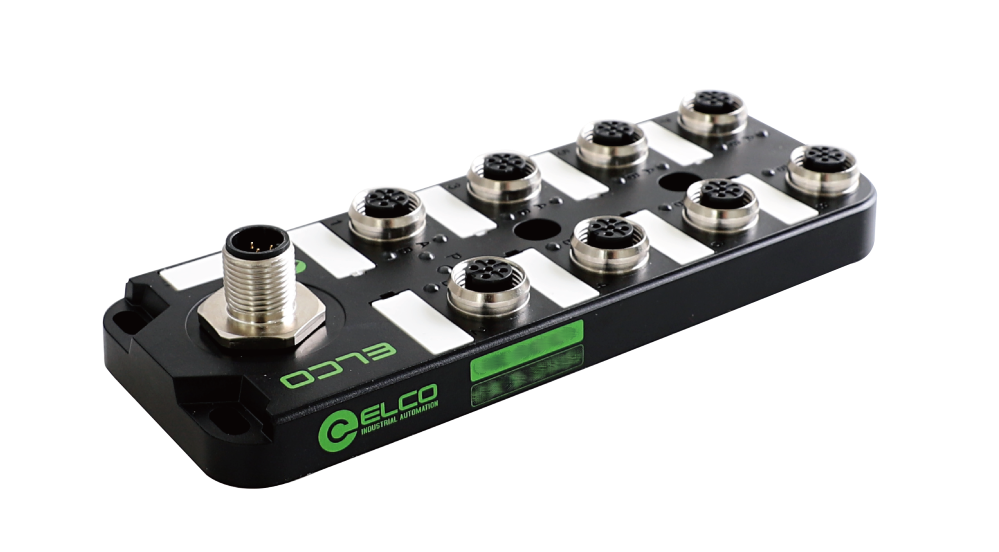

IO-Link Sensor Hub, V1.1.3, Class-A, M12 A-Code 4-pin IO-Link connector, 8 x M12 A-code 5-pin, 16 DI/DO, NPN, 24 V DC, Plastic housing, IP67

LKHA-16UN-M12

SKU LKHA-16UN-M12
by ELCO Industrial Automation

IO-Link Sensor Hub, V1.1.3, Class-A, M12 A-Code 4-pin IO-Link connector, 8 x M12 A-code 5-pin, 16 DI/DO, NPN, 24 V DC, Plastic housing, IP67

$148.22 - $148.22
$148.22
$148.22 - $148.22
$148.22
Availability:
In stock

IO-Link Sensor Hub, V1.1.3, Class-A, M12 A-Code 4-pin IO-Link connector, 8 x M12 A-code 5-pin, 16 DI/DO, NPN, 24 V DC, Plastic housing, IP67

Specifications

Communication protocol IO-Link
IP rating IP67
Housing material PC + ABS
Fieldbus connection 1 x M12 A-Code
Power supply 18 ... 30 V DC
Signal connection 8 x M12 A-Code
Number of channels 16 DI/DO
Input type NPN
Output type NPN
Ambient temperature -25 ... +70 °C
Storage temperature -40 ... +85 °C

No additional information at this time.

Downloads

CE CE_AD_LKH-IP67_V1.0_EN.pdf
MTTF MTTF_AD_LKHA-16UN-M12_V1.0_EN.pdf
UL UL_AD_LKHA-IP67_V1.0_EN.pdf
Datasheet DS_AD_LKHA-16UN-M12_V1.0_EN.pdf
3D Drawing CAD_AD_LKHA-16DIO-M12_V1.0.stp
Manual UM_AD_LKHA-16BIT-M12_V1.0_EN.pdf
Configuration file Config_AD_LKHA-16UN-M12_V1.0.zip
