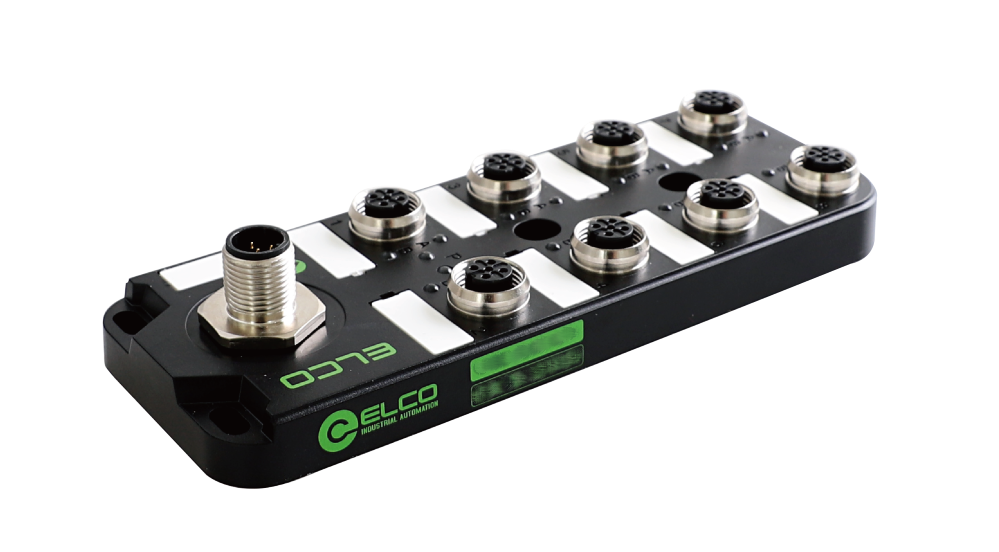

IO-Link Sensor Hub, V1.1.3, Class-A, M12 A-Code 4-pin IO-Link connector, 8 x M12 A-code 5-pin, 16 DI, NPN, 24 V DC, Plastic housing, IP67

LKHA-1600N-M12

SKU LKHA-1600N-M12
by ELCO Industrial Automation

IO-Link Sensor Hub, V1.1.3, Class-A, M12 A-Code 4-pin IO-Link connector, 8 x M12 A-code 5-pin, 16 DI, NPN, 24 V DC, Plastic housing, IP67

$129.69 - $129.69
$129.69
$129.69 - $129.69
$129.69
Availability:
In stock

IO-Link Sensor Hub, V1.1.3, Class-A, M12 A-Code 4-pin IO-Link connector, 8 x M12 A-code 5-pin, 16 DI, NPN, 24 V DC, Plastic housing, IP67

Specifications

IP rating IP67
Housing material PC + ABS
Fieldbus connection 1 x M12 A-Code
Input type NPN
Output type NPN
Communication protocol IO-Link
Signal type Digital I/O
Power supply 18 ... 30 V DC
Number of channels 16 DI
Signal connection 8 x M12 A-Code
Dimensions 55 x 145 x 28 mm

No additional information at this time.

Downloads

CE CE_AD_LKH-IP67_V1.0_EN.pdf
MTTF MTTF_AD_LKHA-1600N-M12_V1.0_EN.pdf
UL UL_AD_LKHA-IP67_V1.0_EN.pdf
Datasheet DS_AD_LKHA-1600N-M12_V1.0_EN.pdf
3D Drawing CAD_AD_LKHA-16DIO-M12_V1.0.stp
EPLAN Drawing ELCO.LKHA-1600N-M12.edz
Manual UM_AD_LKHA-16BIT-M12_V1.0_EN.pdf
Configuration file Config_AD_LKHA-1600N-M12_V1.0.zip
