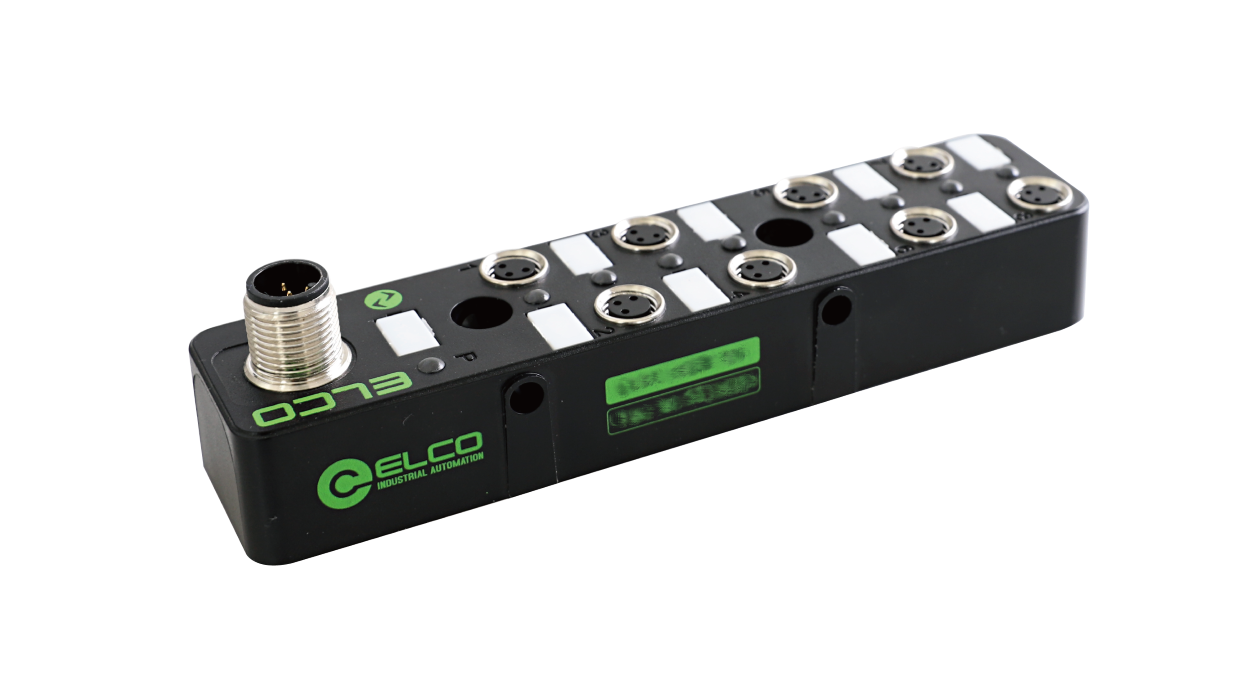

IO-Link Sensor Hub, V1.1.3, Class-A, M12 A-Code 4-pin IO-Link connector, 8 x M8 3-pin, 8 DI/DO, PNP, 24 V DC, Plastic housing, IP67

Specifications

Communication protocol IO-Link
IP rating IP67
Housing material PC + ABS
Fieldbus connection 1 x M12 A-Code
Power supply 18 ... 30 V DC
Signal connection 8 x M8 3-pin
Signal type Digital I/O
Number of channels 8 DI/DO
Input type PNP
Dimensions 30 x 130 x 31 mm
Ambient temperature -25 ... +70 °C

No additional information at this time.

Downloads

CE CE_AD_LKH-IP67_V1.0_EN.pdf
MTTF MTTF_AD_LKHA-08UP-M8_V1.0_EN.pdf
UL UL_AD_LKHA-IP67_V1.0_EN.pdf
Datasheet DS_AD_LKHA-08UP-M8_V1.0_EN.pdf
3D Drawing CAD_AD_LKHA-8DIO-M8_V1.0.stp
EPLAN Drawing ELCO.LKHA-08UP-M8.edz
Manual UM_AD_LKHA-8PBIT-M8_V1.0_EN.pdf
Configuration file Config_AD_LKHA-08UP-M8_V1.0.zip
