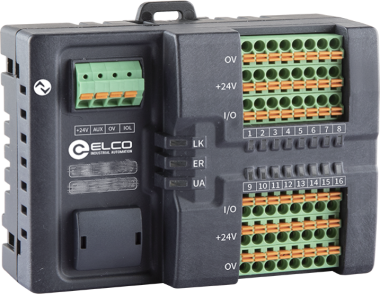

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 16-pin digital input / output interface, 16 DI/DO, NPN, 4-pin terminal supply interface, With double equipotential terminal, 24 V DC

LKHA-16UN-TS

SKU LKHA-16UN-TS
by ELCO Industrial Automation

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 16-pin digital input / output interface, 16 DI/DO, NPN, 4-pin terminal supply interface, With double equipotential terminal, 24 V DC

$163.50 - $163.50
$163.50
$163.50 - $163.50
$163.50
Availability:
In stock

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 16-pin digital input / output interface, 16 DI/DO, NPN, 4-pin terminal supply interface, With double equipotential terminal, 24 V DC

Specifications

Communication protocol IO-Link
Dimensions 91 x 70 x 38 mm
Ambient temperature -25 ... +70 °C
Storage temperature -40 ... +85 °C
Certificate CE
IP rating IP20
Housing material PPE + PS
Fieldbus connection Terminal
Power supply 18 ... 30 V DC
Signal connection Terminal
Signal type Digital I/O

No additional information at this time.

Downloads

CE CE_AD_LKHA-IP20_V1.0_EN.pdf
MTTF MTTF_AD_LKHA-16UN-TS_V1.0_EN.pdf
Datasheet ELCO_LKHA_16UN_TS_Datasheet_CN.pdf
Datasheet DS_AD_LKHA-16UN-TS_V1.0_EN.pdf
3D Drawing CAD_AD_LKHA-16U-TS_V1.0.stp
EPLAN Drawing ELCO.LKHA-16UN-TS.edz
Manual UM_AD_LKHA-16BIT-TS_V1.0_EN.pdf
Configuration file Config_AD_LKHA-16UN-TS_V1.0.zip
