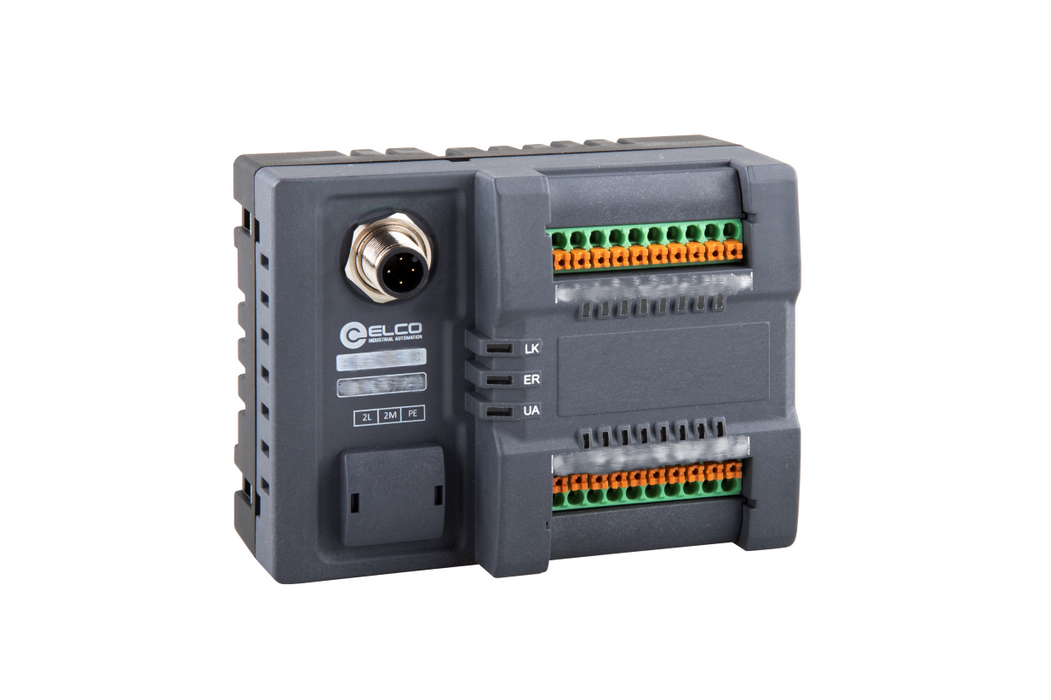

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 16-pin digital input interface, 16 DI, PNP, M12 A-Code supply interface, Without equipotential terminal, 24 V DC

LKHA-1600P-QC

SKU LKHA-1600P-QC
by ELCO Industrial Automation

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 16-pin digital input interface, 16 DI, PNP, M12 A-Code supply interface, Without equipotential terminal, 24 V DC

$101.90 - $101.90
$101.90
$101.90 - $101.90
$101.90
Availability:
In stock

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 16-pin digital input interface, 16 DI, PNP, M12 A-Code supply interface, Without equipotential terminal, 24 V DC

Specifications

IP rating IP20
Housing material PPE + PS
Fieldbus connection 1 x M12 A-Code
Power supply 18 ... 30 V DC
Signal connection Terminal
Signal type Digital I/O
Number of channels 16 DI
Input type PNP
Output type PNP
Dimensions 91 x 70 x 39 mm
Ambient temperature -25 ... +70 °C
Storage temperature -

No additional information at this time.

Downloads

CE CE_AD_LKHA-IP20_V1.0_EN.pdf
MTTF MTTF_AD_LKHA-1600P-QC_V1.0_EN.pdf
UL UL_AD_LKHA-IP20_V1.0_EN.pdf
Datasheet ELCO_LKHA_1600P_QC_Datasheet_CN.pdf
Datasheet DS_AD_LKHA-1600P-QC_V1.0_EN.pdf
3D Drawing CAD_AD_LKHA-16QC_V1.0.stp
EPLAN Drawing ELCO.LKHA-1600P-QC.edz
Manual UM_AD_LKHA-16BIT-Q_V1.0_EN.pdf
Manual ELCO_LKHA-16BIT-Q_Manual.pdf
Configuration file Config_AD_LKHA-1600P-TxQx_V1.0.zip
