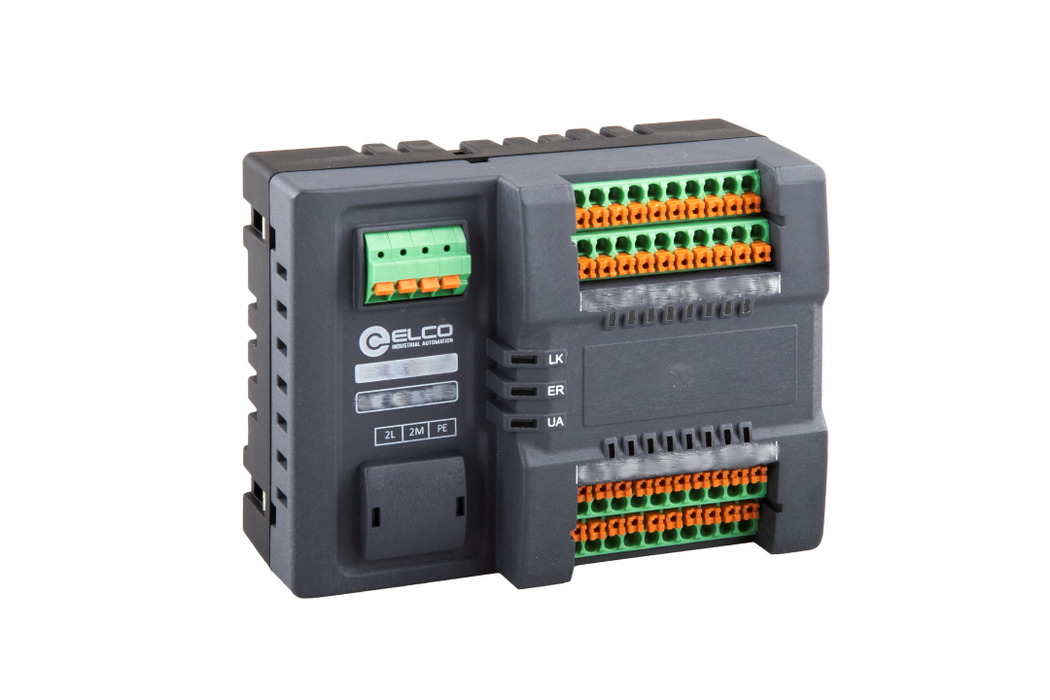

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 16-pin digital input interface, 16 DI, NPN, 4-pin terminal supply interface, With equipotential terminal, 24 V DC

LKHA-1600N-TA

SKU LKHA-1600N-TA
by ELCO Industrial Automation

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 16-pin digital input interface, 16 DI, NPN, 4-pin terminal supply interface, With equipotential terminal, 24 V DC

$111.16 - $111.16
$111.16
$111.16 - $111.16
$111.16
Availability:
In stock

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 16-pin digital input interface, 16 DI, NPN, 4-pin terminal supply interface, With equipotential terminal, 24 V DC

Specifications

Signal connection Terminal
Signal type Digital I/O
Input type NPN
Output type NPN
Storage temperature -40 ... +85 °C
Certificate CE, UL
Communication protocol IO-Link
IP rating IP20
Housing material PPE + PS
Fieldbus connection Terminal
Ambient temperature -25 ... +70 °C
Dimensions 91 x 70 x 3

No additional information at this time.

Downloads

CE CE_AD_LKHA-IP20_V1.0_EN.pdf
MTTF MTTF_AD_LKHA-1600N-TA_V1.0_EN.pdf
UL UL_AD_LKHA-IP20_V1.0_EN.pdf
Datasheet DS_AD_LKHA-1600N-TA_V1.0_EN.pdf
3D Drawing ELCO_LKHA_1600P_TA.stp
3D Drawing CAD_AD_LKHA-16TA_V1.0.stp
EPLAN Drawing ELCO.LKHA-1600N-TA.edz
Manual UM_AD_LKHA-16BIT-T_V1.0_EN.pdf
Configuration file Config_AD_LKHA-1600N-TxQx_V1.0.zip
