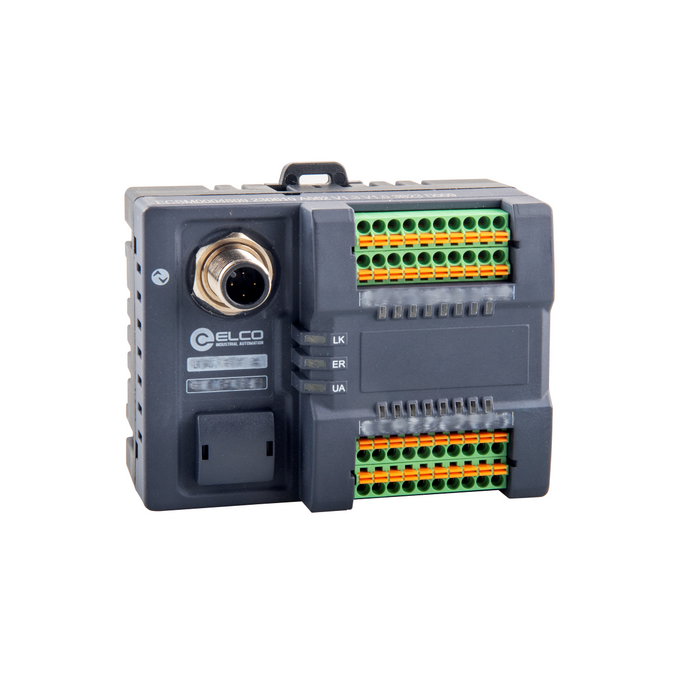

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 8-pin digital input and 8-pin digital output interface, 8 DI, 8 DO, NPN, M12 A-Code supply interface, With equipotential terminal, 24 V DC

LKHA-0808N-QA

SKU LKHA-0808N-QA
by ELCO Industrial Automation

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 8-pin digital input and 8-pin digital output interface, 8 DI, 8 DO, NPN, M12 A-Code supply interface, With equipotential terminal, 24 V DC

$115.80 - $115.80
$115.80
$115.80 - $115.80
$115.80
Availability:
In stock

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 8-pin digital input and 8-pin digital output interface, 8 DI, 8 DO, NPN, M12 A-Code supply interface, With equipotential terminal, 24 V DC

Specifications

Communication protocol IO-Link
IP rating IP20
Housing material PPE + PS
Fieldbus connection 1 x M12 A-Code
Signal connection Terminal
Signal type Digital I/O
Number of channels 8 DI + 8 DO
Input type NPN
Output type NPN
Dimensions 91 x 70 x 39 mm
Ambient temperature -25 ... +70 °C

No additional information at this time.

Downloads

CE CE_AD_LKHA-IP20_V1.0_EN.pdf
MTTF MTTF_AD_LKHA-0808P-QA_V1.0_EN.pdf
UL UL_AD_LKHA-IP20_V1.0_EN.pdf
Datasheet ELCO_LKHA_0808N_QA_Datasheet_CN.pdf
Datasheet DS_AD_LKHA-0808N-QA_V1.0_EN.pdf
3D Drawing CAD_AD_LKHA-16QA_V1.0.stp
Manual UM_AD_LKHA-16BIT-Q_V1.0_EN.pdf
Manual ELCO_LKHA-16BIT-Q_Manual.pdf
Configuration file Config_AD_LKHA-0808N-TxQx_V1.0.zip
