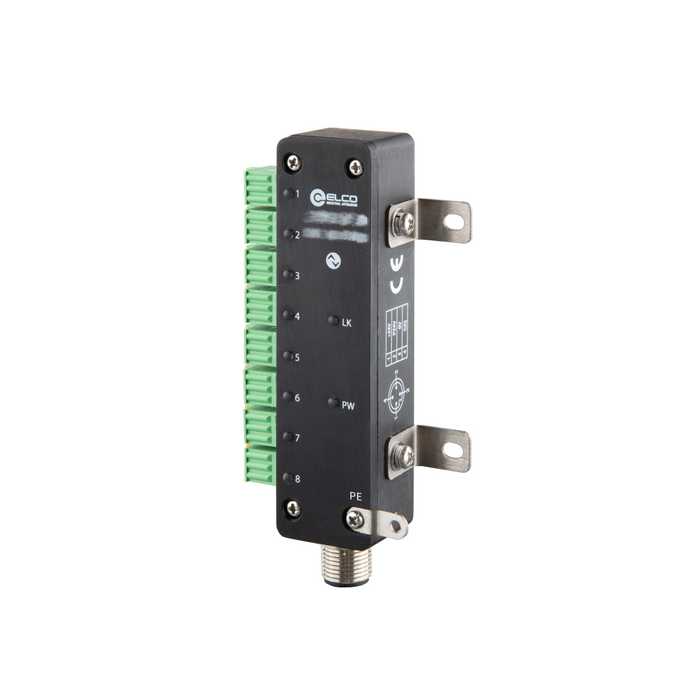

IO-Link Sensor Hub, V1.1.3, Class A, IP 20 module with mounting bracket, 8 x 3-pin digital input interface, 8 DI, PNP, M12 connector supply interface, With equipotential terminal, 24 V DC

LKHA-0800P-QM

SKU LKHA-0800P-QM
by ELCO Industrial Automation

IO-Link Sensor Hub, V1.1.3, Class A, IP 20 module with mounting bracket, 8 x 3-pin digital input interface, 8 DI, PNP, M12 connector supply interface, With equipotential terminal, 24 V DC

$90.32 - $90.32
$90.32
$90.32 - $90.32
$90.32
Availability:
In stock

IO-Link Sensor Hub, V1.1.3, Class A, IP 20 module with mounting bracket, 8 x 3-pin digital input interface, 8 DI, PNP, M12 connector supply interface, With equipotential terminal, 24 V DC

Specifications

Input type PNP
Output type PNP
Dimensions 95 x 25 x 22 mm
Ambient temperature -25 ... +70 °C
Certificate CE
Communication protocol IO-Link
IP rating IP20
Housing material PC + ABS
Fieldbus connection 1 x M12 A-Code
Power supply 18 ... 30 V DC
Signal connection Terminal
Number of channels 8 DI;

No additional information at this time.

Downloads

CE CE_AD_LKHA-IP20_V1.0_EN.pdf
MTTF MTTF_AD_LKHA-0800P-QM_V1.0_EN.pdf
Datasheet ELCO_LKHA_0800P_QM_Datasheet_CN.pdf
Datasheet DS_AD_LKHA-0800P-QM_V1.0_EN.pdf
3D Drawing CAD_AD_LKHA-8DIO-QM_V1.0.stp
EPLAN Drawing ELCO.LKHA-0800P-QM.edz
Manual UM_AD_LKHA-8BIT-QM_V1.0_EN.pdf
Configuration file Config_AD_LKHA-0800P-QM_V1.0.zip
