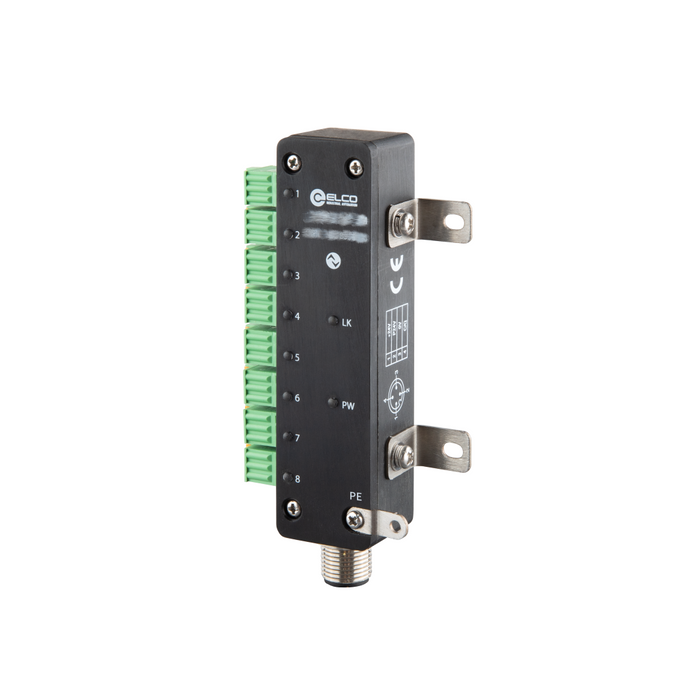

IO-Link Sensor Hub, V1.1.3, Class-A, IP 20 module with mounting bracket, 8 x 3-pin digital input /output interface, 4 DI, 4 DI/DO, NPN, M12 connector supply interface, With equipotential terminal, 24 V DC

LKHA-044UN-QM

SKU LKHA-044UN-QM
by ELCO Industrial Automation

IO-Link Sensor Hub, V1.1.3, Class-A, IP 20 module with mounting bracket, 8 x 3-pin digital input /output interface, 4 DI, 4 DI/DO, NPN, M12 connector supply interface, With equipotential terminal, 24 V DC

$92.64 - $92.64
$92.64
$92.64 - $92.64
$92.64
Availability:
In stock

IO-Link Sensor Hub, V1.1.3, Class-A, IP 20 module with mounting bracket, 8 x 3-pin digital input /output interface, 4 DI, 4 DI/DO, NPN, M12 connector supply interface, With equipotential terminal, 24 V DC

Specifications

Signal connection Terminal
Signal type Digital I/O
Number of channels 4 DI + 4 DI/DO
Input type NPN
Output type NPN
Dimensions 95 x 25 x 22 mm
Ambient temperature -25 ... +70 °C
Storage temperature -40 ... +85 °C
Communication protocol IO-Link
IP rating IP20
Housing material PC + ABS

No additional information at this time.

Downloads

CE CE_AD_LKHA-IP20_V1.0_EN.pdf
MTTF MTTF_AD_LKHA-044UN-QM_V1.0_EN.pdf
Datasheet ELCO_LKHA_044UN_QM_Datasheet_CN.pdf
Datasheet DS_AD_LKHA-044UN-QM_V1.0_EN.pdf
3D Drawing CAD_AD_LKHA-8DIO-QM_V1.0.stp
EPLAN Drawing ELCO.LKHA-044UN-QM.edz
Manual UM_AD_LKHA-8BIT-QM_V1.0_EN.pdf
Configuration file Config_AD_LKHA-044UN-QM_V1.0.zip
