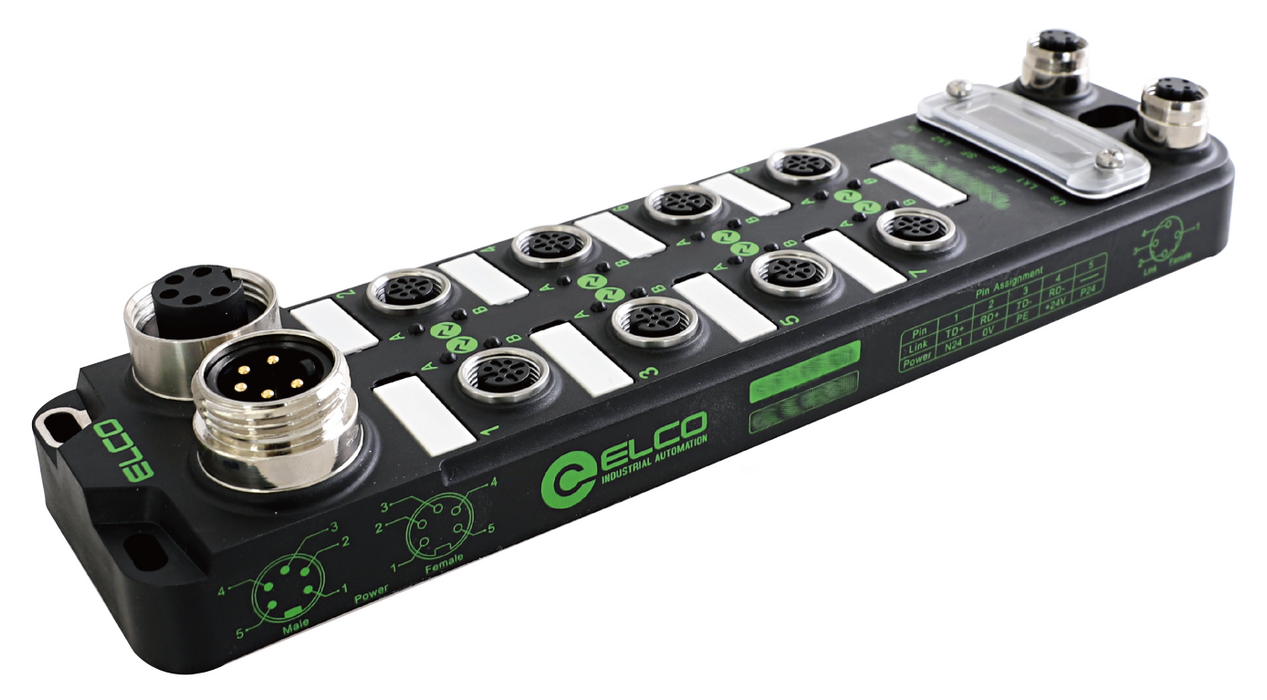

IO-Link Master, EtherNet/IP, 4 x Class-A, 4 x Class-B, IO-Link V1.1.2, Max.12 DI/DO, 8 x M12 A-code 5-pin, 2 x M12 D-code 4-pin, 2 x 7/8" 5-pin, 24 V DC, Plastic housing, IP67

FCEI-8LKM-4A4B

SKU FCEI-8LKM-4A4B
by ELCO Industrial Automation

IO-Link Master, EtherNet/IP, 4 x Class-A, 4 x Class-B, IO-Link V1.1.2, Max.12 DI/DO, 8 x M12 A-code 5-pin, 2 x M12 D-code 4-pin, 2 x 7/8" 5-pin, 24 V DC, Plastic housing, IP67

$391.00 - $391.00
$391.00
$391.00 - $391.00
$391.00
Availability:
In stock

IO-Link Master, EtherNet/IP, 4 x Class-A, 4 x Class-B, IO-Link V1.1.2, Max.12 DI/DO, 8 x M12 A-code 5-pin, 2 x M12 D-code 4-pin, 2 x 7/8" 5-pin, 24 V DC, Plastic housing, IP67

Specifications

Communication protocol EtherNet/IP
IP rating IP67
Housing material PA66 + GF
Power connection 2 x 7/8" 5-pin
Fieldbus connection 2 x M12 D-Code
Power supply 18 ... 30 V DC
Extension port 8 x IO-Link
Signal connection 8 x M12 A-Code
Number of channels 4 Class-A + 4 Class-B, 12 DI/DO
Output type PNP

No additional information at this time.

Downloads

MTTF MTTF_AD_FCEI-8LKM-4A4B_V1.0_EN.pdf
UL UL_AD_IO-Link-Master_V1.0_EN.pdf
Datasheet DS_AD_FCEI-8LKM-4A4B_V1.0_EN.pdf
3D Drawing CAD_AD_8LKM_V1.0.stp
EPLAN Drawing ELCO.FCEI-8LKM-4A4B.edz
Manual UM_AD_IO-Link-EIP_V1.0_EN.pdf
Manual ELCO_FCEI_8LKM_4A4B_Manual_CN.pdf
Configuration file FCEI-8LKM-4A4B-V2.45_EDS.zip
