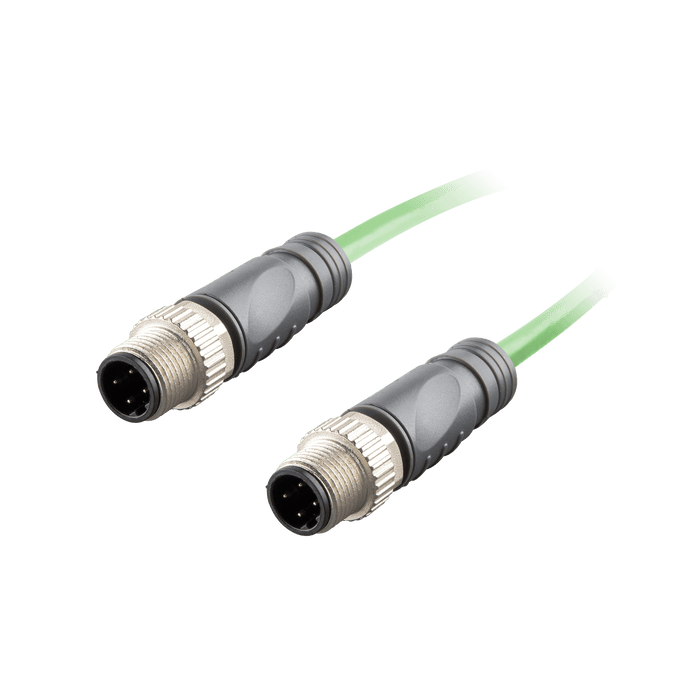

Ethernet Cordset,Double-ended, M12 D-code 4-pin Straight Male,to M12 D-code 4-pin Straight Male,With PUR green jacket 1 × 4 × 0.14 mm² (26 AWG) 5 million bending cycles Cable,2 m

E11DA4009M020

SKU E11DA4009M020
by ELCO Industrial Automation

Ethernet Cordset,Double-ended, M12 D-code 4-pin Straight Male,to M12 D-code 4-pin Straight Male,With PUR green jacket 1 × 4 × 0.14 mm² (26 AWG) 5 million bending cycles Cable,2 m

$28.90 - $28.90
$28.90
$28.90 - $28.90
$28.90
Availability:
In stock

Ethernet Cordset,Double-ended, M12 D-code 4-pin Straight Male,to M12 D-code 4-pin Straight Male,With PUR green jacket 1 × 4 × 0.14 mm² (26 AWG) 5 million bending cycles Cable,2 m

Specifications

Number of contacts 4
Cable jacket color green
Wire cross-section 2 × 2 × 26 AWG
Coding D-code - D-code
Shape Straight-Straight
Gender Male-Male
Rated voltage 30 V DC
Rated current 4 A
LED indicator NO
The head material TPU
Nut/bolt material Zinc die casting
Coating contact material Gold plated

No additional information at this time.

Downloads

CE ELCO_Communication Connector_CE.pdf
Datasheet ELCO_ProfiNet Connector_Datasheet_EN.pdf
3D Drawing ELCO_E11D04XXXMXXX.stp
