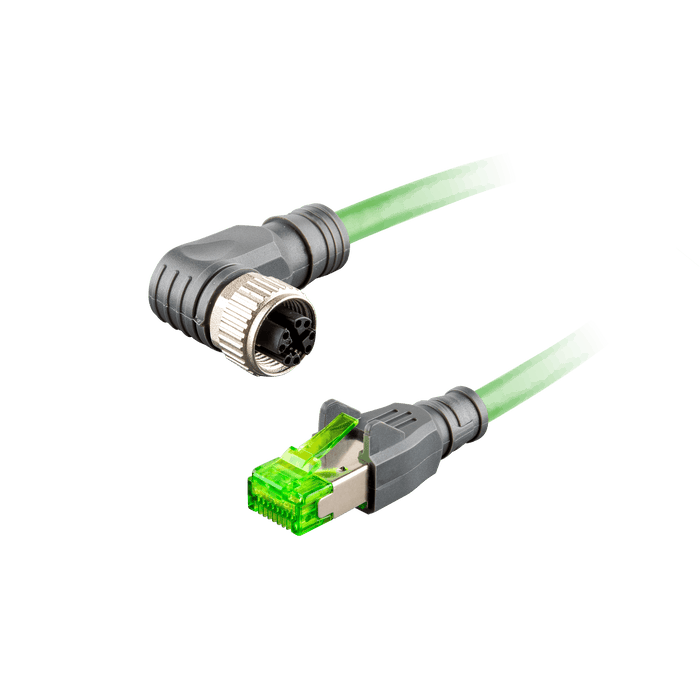

Ethernet Cordset,Double-ended, M12 X-code 8-pin Angled Female,to RJ45 8-pin Straight Male,With PUR black jacket 2 × 2 × 4 ×0.14 mm²(26 AWG) Cable,3m

E2W6XB8608M030

SKU E2W6XB8608M030
by ELCO Industrial Automation

Ethernet Cordset,Double-ended, M12 X-code 8-pin Angled Female,to RJ45 8-pin Straight Male,With PUR black jacket 2 × 2 × 4 ×0.14 mm²(26 AWG) Cable,3m

$58.98 - $58.98
$58.98
$58.98 - $58.98
$58.98
Availability:
In stock

Ethernet Cordset,Double-ended, M12 X-code 8-pin Angled Female,to RJ45 8-pin Straight Male,With PUR black jacket 2 × 2 × 4 ×0.14 mm²(26 AWG) Cable,3m

Specifications

Wire cross-section 4 × 2 × 26 AWG
Rated voltage 30 V
Rated current 0.5 A
The head material TPU
Nut/bolt material Zinc die-casting - Nickel-plated copper
Coating contact material Gold-plated copper
Material contact TPU - PC
Cable jacket material PVC
Cable jacket color black

No additional information at this time.

Downloads

CE ELCO_Communication Connector_CE.pdf
Datasheet DS_C_E2W6XB8_V1.1_EN.pdf
