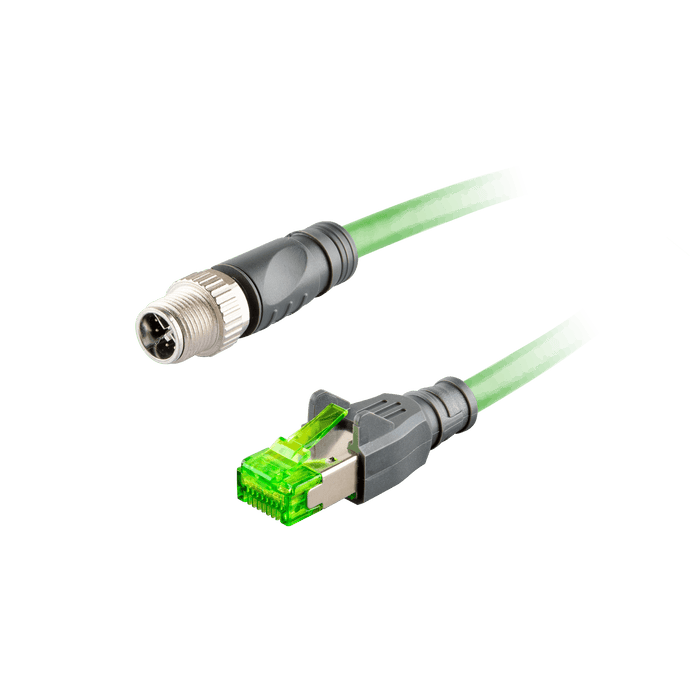

Ethernet Cordset,Double-ended, M12 X-code 8-pin Straight Male,to RJ45 8-pin Straight Male,With PVC green jacket 2 × 2 × 4 ×0.14 mm²(26 AWG) Cable,4m

E16XB8607M040

SKU E16XB8607M040
by ELCO Industrial Automation

Ethernet Cordset,Double-ended, M12 X-code 8-pin Straight Male,to RJ45 8-pin Straight Male,With PVC green jacket 2 × 2 × 4 ×0.14 mm²(26 AWG) Cable,4m

$64.80 - $64.80
$64.80
$64.80 - $64.80
$64.80
Availability:
In stock

Ethernet Cordset,Double-ended, M12 X-code 8-pin Straight Male,to RJ45 8-pin Straight Male,With PVC green jacket 2 × 2 × 4 ×0.14 mm²(26 AWG) Cable,4m

Specifications

The head material TPU
Nut/bolt material Zinc die-casting - Nickel-plated copper
Coating contact material Gold-plated copper
Material contact TPU - PC
Cable jacket material PVC
Cable jacket color green
Wire insulation material PE
Wire insulation color WH/OG, OG, WH/GN, GN, WH/BN, BN, WH/BU, BU

No additional information at this time.

Downloads

CE ELCO_Communication Connector_CE.pdf
Datasheet DS_C_E16XB8_V1.2_EN.pdf
3D Drawing ELCO_E16XB8XXXMXXX.stp
