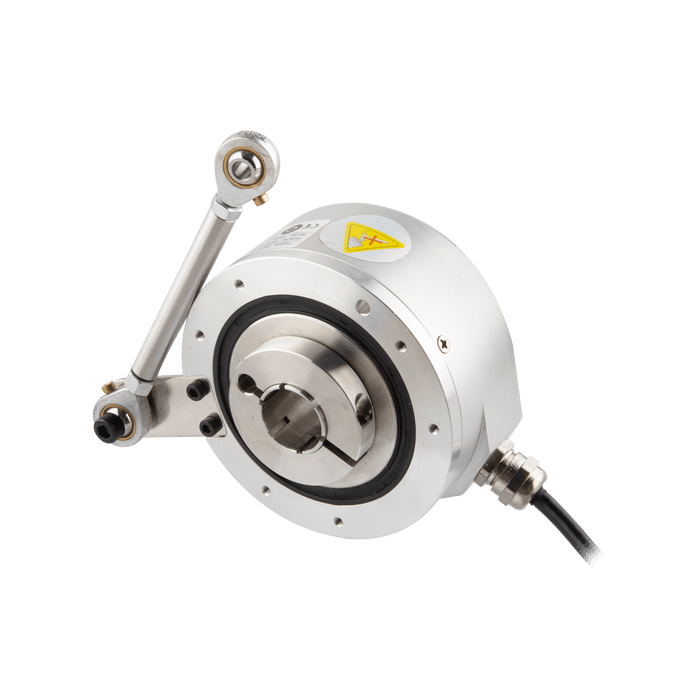

Hollow shaft incremental encoder, Heavydic Series EV90, Crutch arm, Through hollow Shaft 40H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), M23 12Pin, Resoluteion 800

Specifications

IP rating IP66
Model Incremental encoder
Housing material Al-alloy
Housing diameter 90 mm
Flange type Fixing plate
Shaft type Through hollow shaft
Shaft diameter 40 mm
Max load capacity of the shaft 60 N Axial120 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 6 x 10-6 kgm2
Starting torque ＜

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV90P_V1.0_EN.pdf
3D Drawing CAD_E_EV90R40-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
