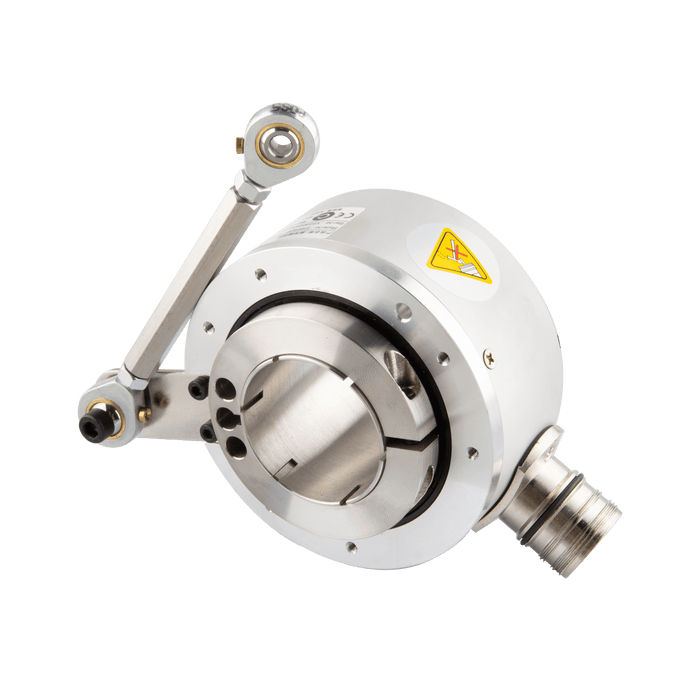

Hollow shaft incremental encoder, Heavydic Series EV90, Crutch arm, Through hollow Shaft 16H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), M23 12Pin, Resoluteion 1024

EV90R16-H6TR-1024

SKU EV90R16-H6TR-1024
by ELCO Industrial Automation

Hollow shaft incremental encoder, Heavydic Series EV90, Crutch arm, Through hollow Shaft 16H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), M23 12Pin, Resoluteion 1024

$429.19 - $429.19
$429.19
$429.19 - $429.19
$429.19
Availability:
In stock

Hollow shaft incremental encoder, Heavydic Series EV90, Crutch arm, Through hollow Shaft 16H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), M23 12Pin, Resoluteion 1024

Specifications

Pulse frequency 300 kHz
Model Incremental encoder
Housing material Al-alloy
Housing diameter 90 mm
IP rating IP66
Flange type Fixing plate
Shaft type Through hollow shaft
Shaft diameter 16 mm
Max load capacity of the shaft 60 N Axial120 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 6 x 10-6

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV90P_V1.0_EN.pdf
3D Drawing CAD_E_EV90R16-xxTR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
