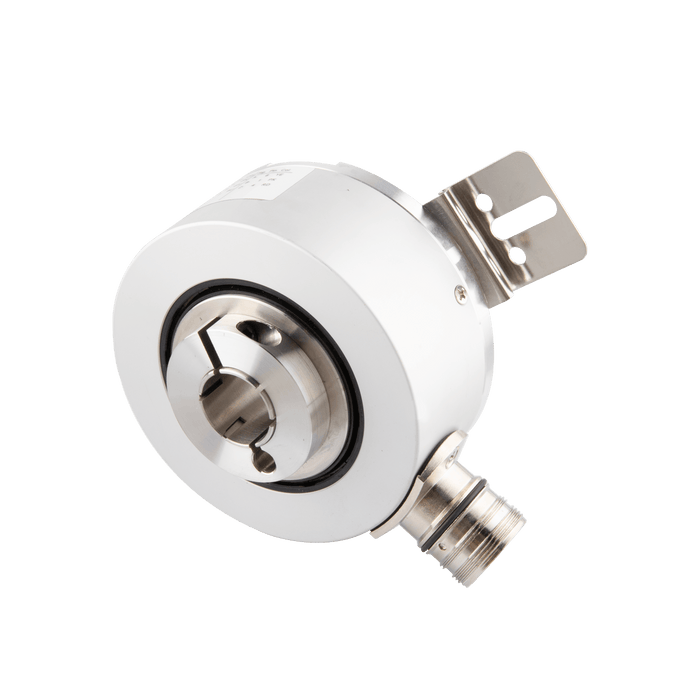

Hollow shaft incremental encoder, Heavydic Series EV90, Fixing sheet, Through hollow Shaft 30H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), M23 12Pin, Resoluteion 1024

EV90P30-H6TR-1024

SKU EV90P30-H6TR-1024
by ELCO Industrial Automation

Hollow shaft incremental encoder, Heavydic Series EV90, Fixing sheet, Through hollow Shaft 30H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), M23 12Pin, Resoluteion 1024

$403.90 - $403.90
$403.90
$403.90 - $403.90
$403.90
Availability:
In stock

Hollow shaft incremental encoder, Heavydic Series EV90, Fixing sheet, Through hollow Shaft 30H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), M23 12Pin, Resoluteion 1024

Specifications

Max Speed(rpm) 6000 rpm
Ambient temperature -20 ... +80 °C
Shock resistance 50 g, 11 ms
Vibration resistance 10 g, 10 ... 2000 Hz
Pulse frequency 300 kHz
Cable length 1.5 m
Connection type M23 12-pin Male
Permissible load(channel) ±40 mA
Moment of inertia 15 x 10-6 kgm2
Output logic Push-pull HTL

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV90P_V1.0_EN.pdf
3D Drawing CAD_E_EV90P30-xxTR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
