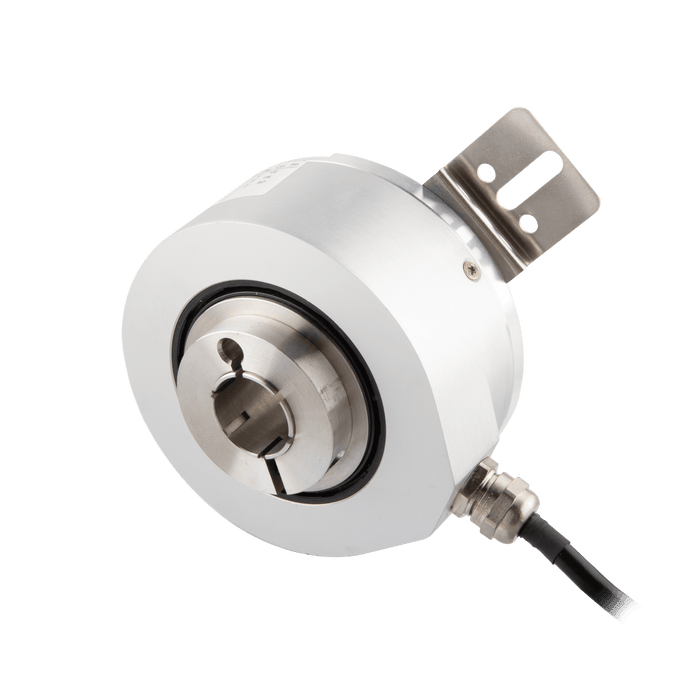

Hollow shaft incremental encoder, Heavydic Series EV90, Fixing sheet, Through hollow Shaft 30H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 1.5 m, Resoluteion 1024

EV90P30-H6PR-1024

SKU EV90P30-H6PR-1024
by ELCO Industrial Automation

Hollow shaft incremental encoder, Heavydic Series EV90, Fixing sheet, Through hollow Shaft 30H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 1.5 m, Resoluteion 1024

$375.64 - $375.64
$375.64
$375.64 - $375.64
$375.64
Availability:
In stock

Hollow shaft incremental encoder, Heavydic Series EV90, Fixing sheet, Through hollow Shaft 30H7 mm, 10...30 VDC, Output Push-pull(with inverted signal), Cable 1.5 m, Resoluteion 1024

Specifications

Pulse frequency 300 kHz
Cable length 1.5 m
Flange type Fixing plate
Max load capacity of the shaft 80 N Axial140 N Radial
Max Speed(rpm) 6000 rpm
Shaft type Through hollow shaft
Shaft diameter 30 mm
Model Incremental encoder
Connection type Cable outlet
Housing material Al-alloy

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV90P_V1.0_EN.pdf
3D Drawing CAD_E_EV90P30-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
