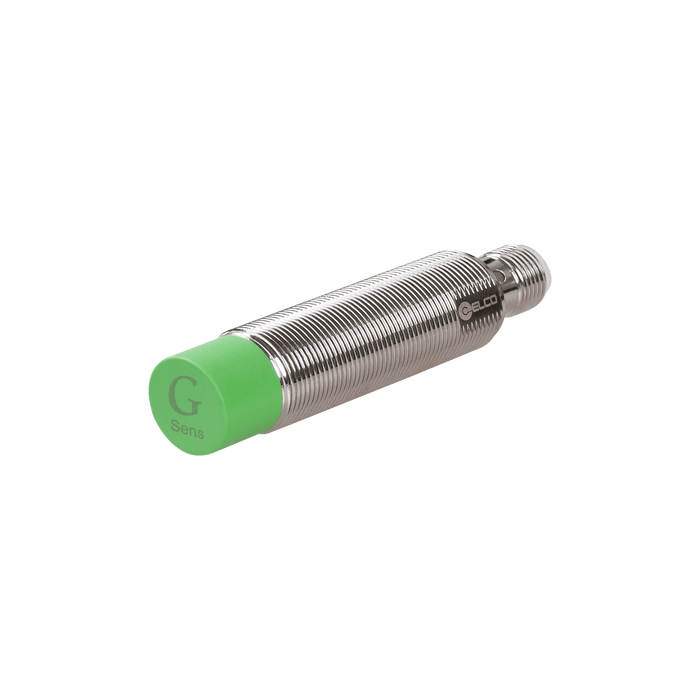

Inductive Sensor, Threaded cylindrical stainless steel housing M18, Switching distance 12 mm, Non-flush, IP68, -40…85 °C, NPN NC, M12 connector

NI12-ZG18-CN6L-Q12

SKU NI12-ZG18-CN6L-Q12
by ELCO Industrial Automation

Inductive Sensor, Threaded cylindrical stainless steel housing M18, Switching distance 12 mm, Non-flush, IP68, -40…85 °C, NPN NC, M12 connector

$44.00 - $44.00
$44.00
$44.00 - $44.00
$44.00
Availability:
In stock

Inductive Sensor, Threaded cylindrical stainless steel housing M18, Switching distance 12 mm, Non-flush, IP68, -40…85 °C, NPN NC, M12 connector

Specifications

Sensing surface material PBT
Connection M12, 4-pin
Housing material Stainless steel
IP rating IP68
External dimensions M18 x 1
Sensing range 4 mm
Switching frequency 350 Hz
Supply voltage 10 ... 30 V DC
Ambient temperature -40 … +85 ℃
Load current ≤ 200 mA
Output status NC
Output type NPN

No additional information at this time.

Downloads

CE CE_SI_Metal-Housing_V1.0_EN.pdf
Datasheet ELCO_ZG系列_DataSheet_CN.pdf
Datasheet DS_SI_ZG18_V1.1_EN.pdf
3D Drawing CAD_SI_ZG18-N-PN-Q12_V1.0.stp
Manual UM_SI_Inductive_V1.0_EN&CN.pdf
