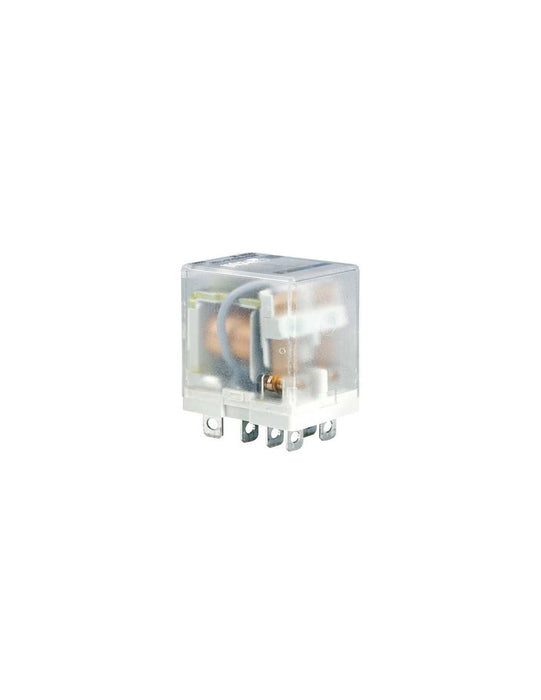

Altech RY2-2012-26-1024-D DPDT, 12A Industrial Electromagnetic Relay

Altech RY2-2012-26-1024-D DPDT, 12A Industrial Electromagnetic Relay

SKU RY2-2012-26-1024-D
by Altech
$24.52 - $24.52
$24.52
$24.52 - $24.52
$24.52
Availability:
In stock

RY2 DPDT DC Coil, Industrial Electromagnetic Relay

Standard Features:

  • Relays of general application
  • For plug-in sockets, 35 mm rail mount or on panel mounting
  • Cadmium-free contacts
  • R2M and RUC also for PCB and soldering connections
  • AC and DC coils available

Specifications

Part Number RY2-2012-26-1024-D
Coil Voltage (V) 24
Coil Type DC
Coil resistance at 20 °C in Ω 640
Coil operating range max. (at 55°C) 26.4
Coil operating range min. (at 20°C) 19.2
Options With surge suppression element (diode)

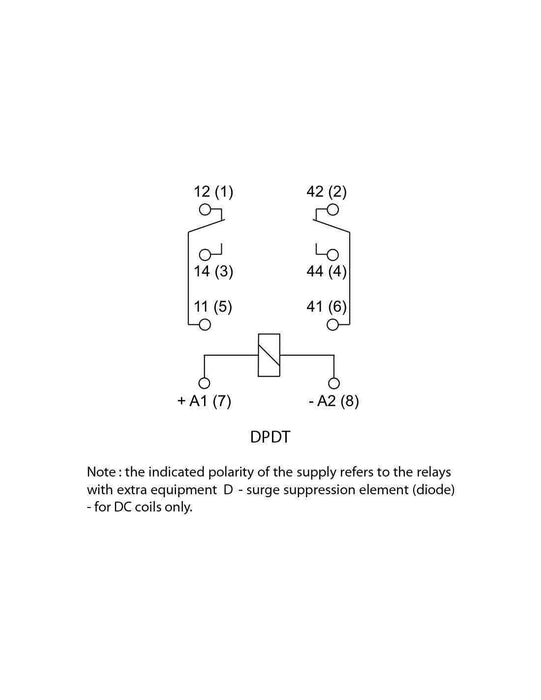

Number and type of contacts DPDT
Contact material AgNi
Rated / max. switching voltage AC 250 V / 440 V
Min. switching voltage 5 V
Rated load (capacity) AC1 12 A / 250 V AC
Rated load (capacity) DC1 12 A / 30 V DC
Min. switching current 5 mA
Max. inrush current 20 A
Rated current 12A
Max. breaking capacity AC1 3000 VA
Min. breaking capacity 0.3 W
Contact resistance ≤ 100 mΩ
Max. operating frequency at rated load AC1 1200 cycles/hour
Max. operating frequency - No load 18000 cycles/hour
Rated voltage 50/60 Hz AC: 6 ... 240 V, DC: 5 ... 220 V
Must release voltage AC: ≥ 0.2 Un; DC: ≥ 0.1 Un
Rated power consumption AC: 1.6 VA, DC: 0.9 W
Insulation rated voltage 250 V AC
Rated surge voltage 4000 V 1.2 / 50 µs
Overvoltage category III
Insulation pollution degree 3
Dielectric strength between coil and contacts 2500 V AC type of insulation: basic
Dielectric strength contact clearance 1000 V AC type of clearance: micro-disconnection
Dielectric strength pole - pole 2500 V AC type of insulation: basic
Contact - Coil distance Clearance ≥ 2.6 mm
Contact - Coil distance Creepage ≥ 4 mm
Operating / release time (Typical) 15 ms / 10 ms
Electrical life- resistive AC1 greater than 10^5; 12 A. 250 V AC
Mechanical life (cycles) greater than 10⁷

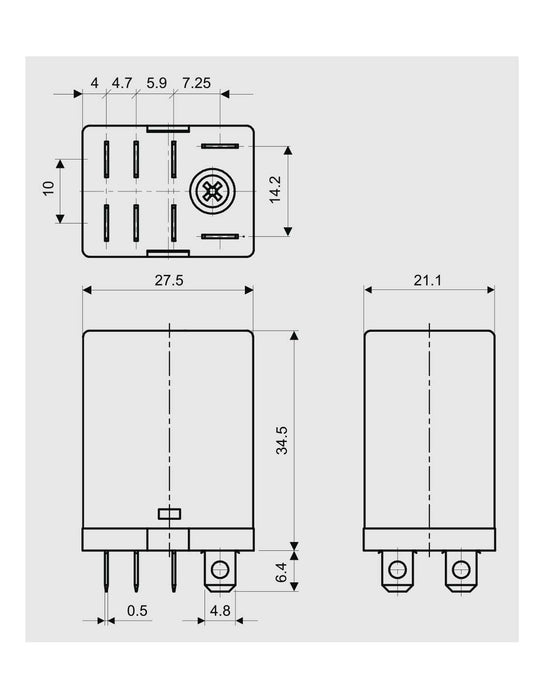

Dimensions (L x W x H) 27.5 x 21.1 x 34.5 mm
Weight 35 g
Storage Temperature -40...+70 °C
Operating Temperature -40...+55 °C
Protection Category IP 40 PN-EN 60529
Shock resistance (NO/NC) 10 g
Vibration resistance 5 g 10...150 Hz
Relay Type RY2
Standard Pack 10
