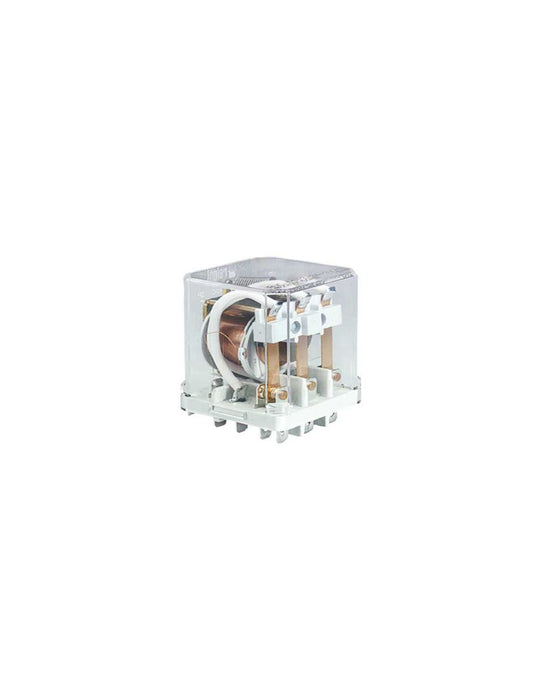

Altech RUC-2053-26-1110-KL 3PST(3NO) Contact Gap ≥ 3mm, Industrial Electromagnetic Relay

Altech RUC-2053-26-1110-KL 3PST(3NO) Contact Gap ≥ 3mm, Industrial Electromagnetic Relay

SKU RUC-2053-26-1110-KL
by Altech
$37.61 - $37.61
$37.61
$37.61 - $37.61
$37.61
Availability:
In stock

RUC 3PST(3NO) Contact Gap ≥ 3mm DC Coil, Industrial Electromagnetic Relay

Standard Features:

  • Relays of general application
  • For plug-in sockets, 35 mm rail mount or on panel mounting
  • Cadmium-free contacts
  • R2M and RUC also for PCB and soldering connections
  • AC and DC coils available

Specifications

Part Number RUC-2053-26-1110-KL
Coil Voltage (V) 110
Coil Type DC
Coil resistance at 20 °C in Ω 9200
Coil operating range max. (at 55°C) 121
Coil operating range min. (at 20°C) 88
Options With test button without block function and light indicator (LED)

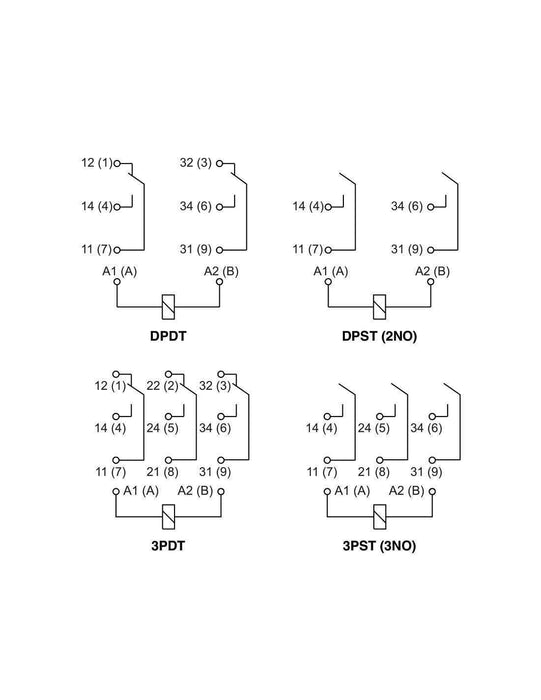

Number and type of contacts 3PST
Contact material AgNi
Rated / max. switching voltage AC 400 V / 440 V
Min. switching voltage 5 V
Rated load (capacity) AC1 16 A / 250 V AC or 10 A / 400 V AC
Rated load (capacity) DC1 16 A / 24 V DC
Min. switching current 5 mA
Max. inrush current 40 A
Rated current 16A
Max. breaking capacity AC1 4000 VA
Min. breaking capacity 0.3 W
Contact resistance ≤ 100 mΩ
Max. operating frequency at rated load AC1 1200 cycles/hour
Max. operating frequency - No load 12000 cycles/hour
Rated voltage 50/60 Hz AC: 6 ... 240 V, DC: 6 ... 220 V
Must release voltage AC: ≥ 0.15 Un; DC: ≥ 0.1 Un
Rated power consumption AC: 2.8 VA 50 Hz; 2.5 VA 60 Hz, DC: 1.5 W; 1.7 W with contact gap ≥ 3 mm
Insulation rated voltage 400 V AC
Rated surge voltage 4000 V 1.2 / 50 µs
Overvoltage category III
Insulation pollution degree 3
Dielectric strength between coil and contacts 2500 V AC type of insulation: basic
Dielectric strength contact clearance 1500 V AC type of clearance: micro-disconnection, 2500 V AC with contact gap ≥ 3 mm. type of clearance: full-disconnection
Dielectric strength pole - pole 2500 V AC type of insulation: basic
Contact - Coil distance Clearance ≥ 5 mm
Contact - Coil distance Creepage ≥ 8 mm
Operating / release time (Typical) 20 ms / 15 ms
Electrical life- resistive AC1 greater than 10^5; 16 A. 250 V AC; greater than 10^5; 10 A. 400 V AC
Mechanical life (cycles) greater than 10⁷
Motor load according to UL 508 DPDT: 1/3 HP 120 V AC. single-phase motor, 1/2 HP 240 V AC single-phase motor. 3PDT: 1/3 HP 120 V AC. single-phase motor 1/2 HP 240 V AC. single-phase motor. 3PDT: 1/2 HP 240 V AC. three-phase motor

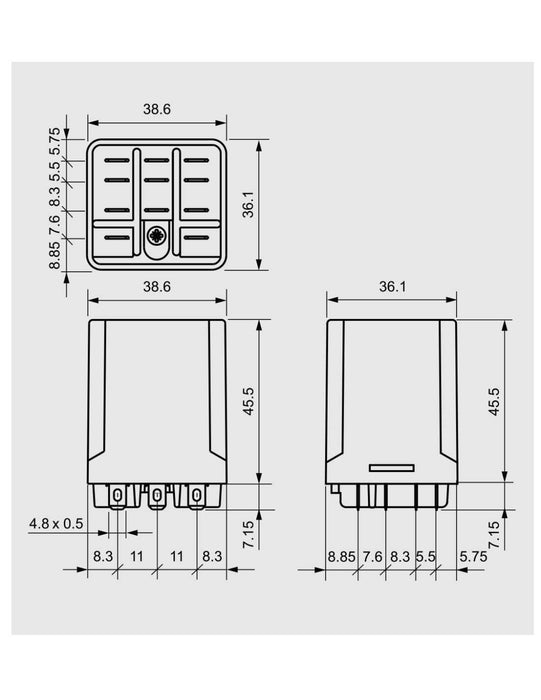

Dimensions (L x W x H) 36.1 x 38.6 x 45.5 mm
Weight 80 g
Storage Temperature -40...+85 °C
Operating Temperature AC: -40...+55 °C 3PDT. 3PST (NO) /16 A (+70 °C DPDT. DPST (NO) / 16 A), DC: -40...+55 °C 3PDT. 3PST (NO) /16 A (+70 °C 3PDT. 3PST (NO) /10 A; DPDT. DPST (NO) / 16 A)
Protection Category IP 00 PN-EN 60529
Shock resistance (NO/NC) 10 g
Vibration resistance 5 g 10...150 Hz
Solder bath temperature max. 270 °C
Soldering time max. 5 s
Relay Type RUC
Standard Pack 10
