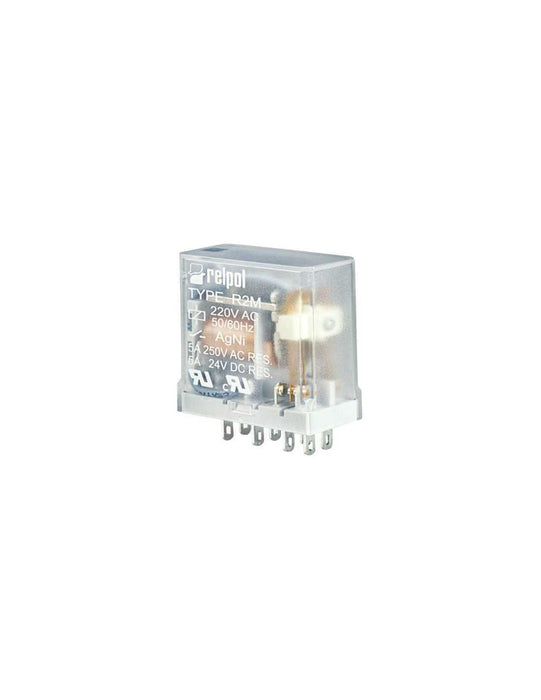

R2M DPDT DC coil, Industrial Electromagnetic Relay

Standard Features:

  • Relays of general application
  • For plug-in sockets, 35 mm rail mount or on panel mounting
  • Cadmium-free contacts
  • R2M and RUC also for PCB and soldering connections
  • AC and DC coils available

Specifications

Part Number R2M-2012-23-1024
Coil Voltage (V) 24
Coil Type DC
Coil resistance at 20 °C in Ω 750
Coil operating range max. (at 55°C) 26.4
Coil operating range min. (at 20°C) 19.2

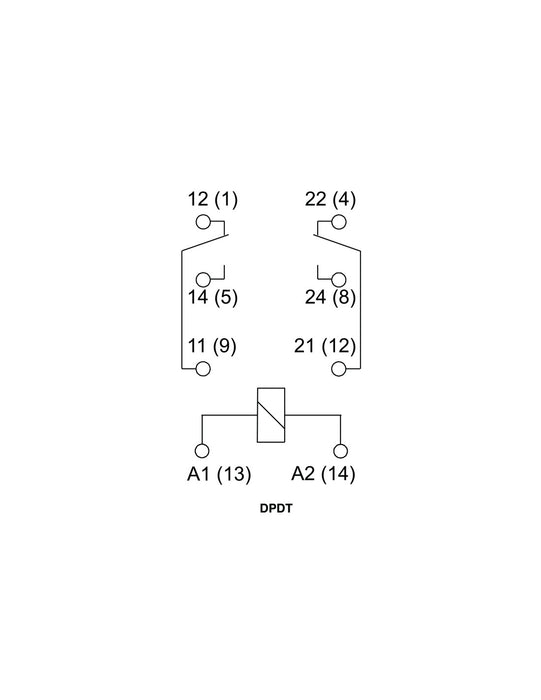

Number and type of contacts DPDT
Contact material AgNi
Rated / max. switching voltage AC 250 V / 250 V
Min. switching voltage 5 V
Rated load (capacity) AC1 5 A / 250 V AC
Rated load (capacity) DC1 5 A / 24 V DC
Min. switching current 5 mA
Rated current 5A
Max. breaking capacity AC1 1250 VA
Min. breaking capacity 0.3 W
Contact resistance ≤ 100 mΩ
Max. operating frequency at rated load AC1 1200 cycles/hour
Max. operating frequency - No load 36000 cycles/hour
Rated voltage 50/60 Hz AC: 6 ... 240 V, DC: 6 ... 110 V
Must release voltage ≥ 0.05 Un
Rated power consumption AC: 1.2 VA, DC: 0.9 W
Insulation rated voltage 250 V AC
Rated surge voltage 2500 V 1.2 / 50 µs
Overvoltage category II
Insulation pollution degree 3
Dielectric strength between coil and contacts 2000 V AC type of insulation: basic
Dielectric strength contact clearance 1000 V AC type of clearance: micro-disconnection
Dielectric strength pole - pole 2000 V AC type of insulation: basic
Contact - Coil distance Clearance ≥ 3 mm
Contact - Coil distance Creepage ≥ 4 mm
Operating / release time (Typical) AC: 8 ms / 7 ms; DC: 10 ms / 3 ms
Electrical life- resistive AC1 greater than 2 x 10^5; 5 A. 250 V AC
Mechanical life (cycles) greater than 2 x 10⁷

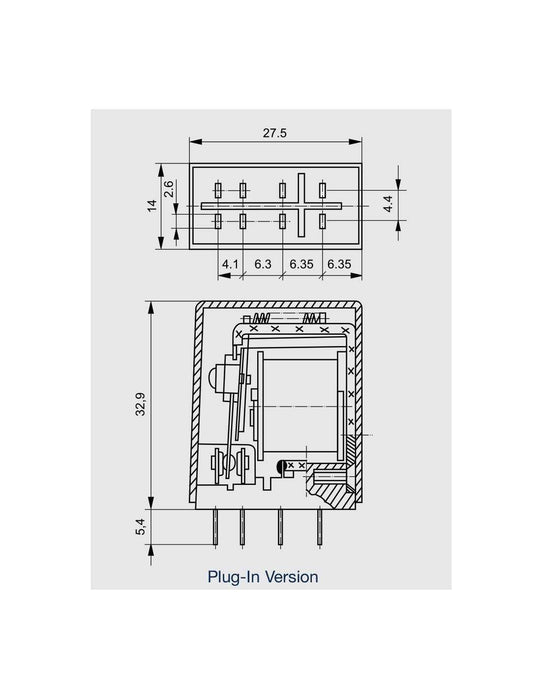

Dimensions (L x W x H) 27.5 x 14 x 32.9 mm
Weight 22 g
Storage Temperature -40...+70 °C
Operating Temperature -40...+55 °C
Protection Category IP 40 PN-EN 60529
Shock resistance (NO/NC) 10 g
Vibration resistance 5 g 10...150 Hz
Solder bath temperature max. 270 °C
Soldering time max. 5 s
Relay Type R2M
Standard Pack 40
