Altech R15-2013-23-1024-WT 3PDT, 10A Industrial Electromagnetic Relay

Altech R15-2013-23-1024-WT 3PDT, 10A Industrial Electromagnetic Relay

SKU R15-2013-23-1024-WT
by Altech
$27.13 - $27.13
$27.13
$27.13 - $27.13
$27.13
Availability:
In stock

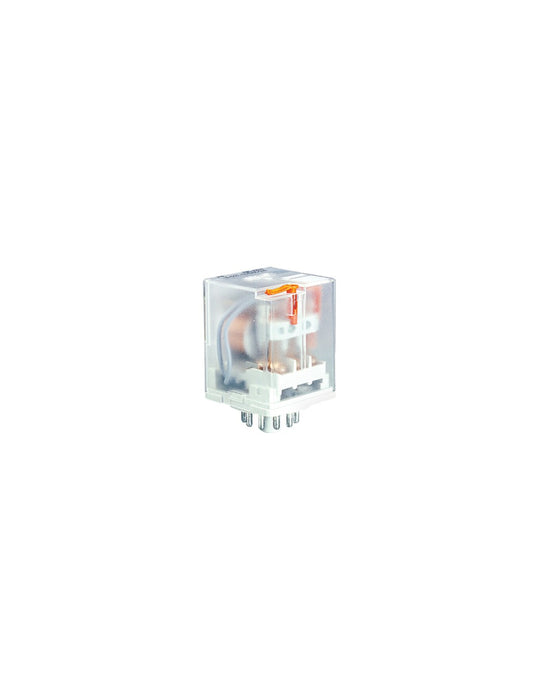

R15 3PDT DC Coil, Industrial Electromagnetic Relay

Standard Features:

  • Contacts AgNi
  • For plug-in sockets, 35 mm rail mount or on panel mounting.
  • Cadmium-free contacts-R15 DPDT, R15 3PDT, R15 4PDT relays
  • WT (mechanical indicator and lockable front test button) - standard features of R15 DPDT, R15 3DPT relays in cover, for plug-in sockets.
  • Relays may be provided with the test buttons (no latching) and plugs (see catalog page 115).
  • AUCOTEAM, GmbH Berlin - railway standards.

Specifications

Part Number R15-2013-23-1024-WT
Coil Voltage (V) 24
Coil Type DC
Coil resistance at 20 °C in Ω 430
Coil operating range max. (at 55°C) 26.4
Coil operating range min. (at 20°C) 19.2
Options With mechanical indicator + lockable front test button

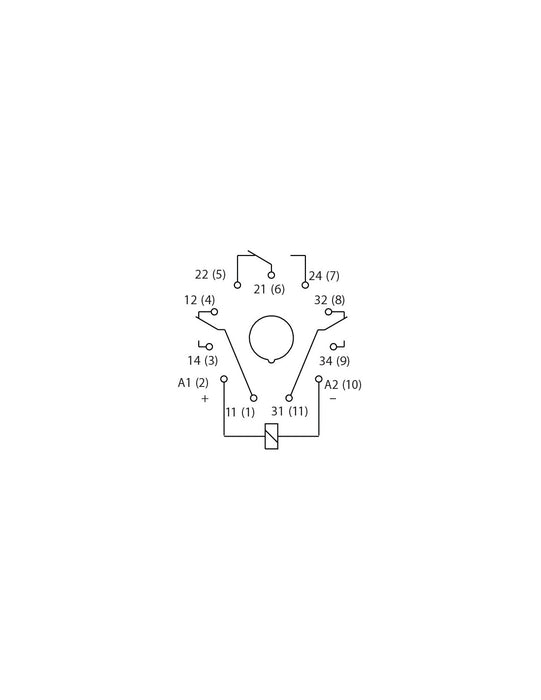

Number and type of contacts 3PDT
Contact material AgNi
Rated / max. switching voltage AC 250 V / 440 V
Min. switching voltage 10 V
Rated load (capacity) AC1 10 A / 250V AC; 10 A / 277V AC UL508
Rated load (capacity) AC15 3 A / 120 V; 1.5 A / 240 V (B300)
Rated load (capacity) AC3 370 W (single-phase motor. 1/2HP/240VAC UL508)
Rated load (capacity) DC1 10 A / 24 V DC
Rated load (capacity) DC13 0.22 A / 120 V; 0.1 A / 250 V (R300)
Min. switching current 5 mA
Max. inrush current 20 A
Rated current 10A
Max. breaking capacity AC1 2500 VA
Min. breaking capacity 0.3 W
Contact resistance ≤ 100 mΩ
Max. operating frequency at rated load AC1 1200 cycles/hour
Max. operating frequency - No load 12000 cycles/hour
Rated voltage 50/60 Hz AC: 6 ... 240 V, DC: 6 ... 220 V
Must release voltage AC: ≥ 0.15 Un; DC: ≥ 0.1 Un
Rated power consumption AC: 2.8 VA 50Hz; 2.5 VA 60Hz; DC: 1.5 W
Insulation rated voltage 250 V AC
Rated surge voltage 2500 V 1.2 / 50 µs
Overvoltage category III
Insulation pollution degree 3
Dielectric strength between coil and contacts 2500 V AC type of insulation: basic
Dielectric strength contact clearance 1500 V AC type of clearance: micro-disco
Dielectric strength pole - pole 2000 V AC type of insulation: basic
Contact - Coil distance Clearance ≥ 3 mm
Contact - Coil distance Creepage ≥ 4.2 mm
Operating / release time (Typical) AC: 12 ms / 10 ms; DC: 18 ms / 7 ms
Electrical life- resistive AC1 greater than 2 x 10^5; 10 A. 250 V AC
Mechanical life (cycles) greater than 2 x 10⁷

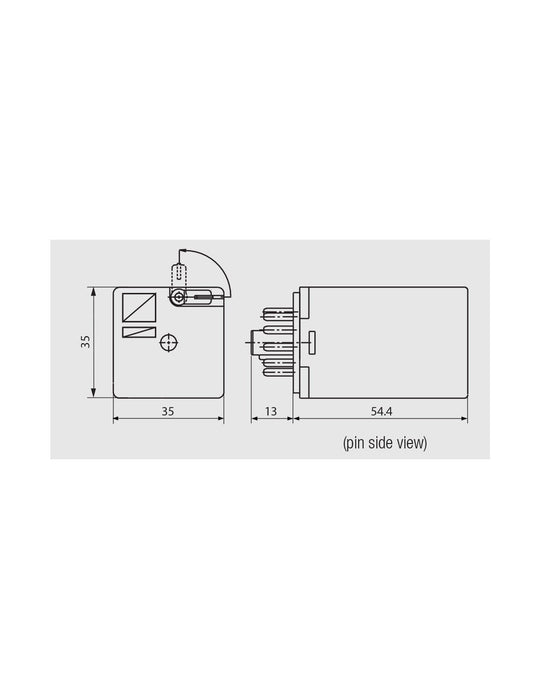

Dimensions (L x W x H) 35 x 35 x 54.4 mm
Weight 83 g
Storage Temperature -40...+85 °C
Operating Temperature AC: -40...+55 °C; DC: -40...+70 °C
Protection Category IP 40 PN-EN 60529
Environmental Protection RTI PN-EN 116000-3
Shock resistance (NO/NC) 10 g
Vibration resistance 5 g 10...150 Hz
Solder bath temperature max. 270 °C
Soldering time max. 5 s
Relay Type R15
Standard Pack 10
