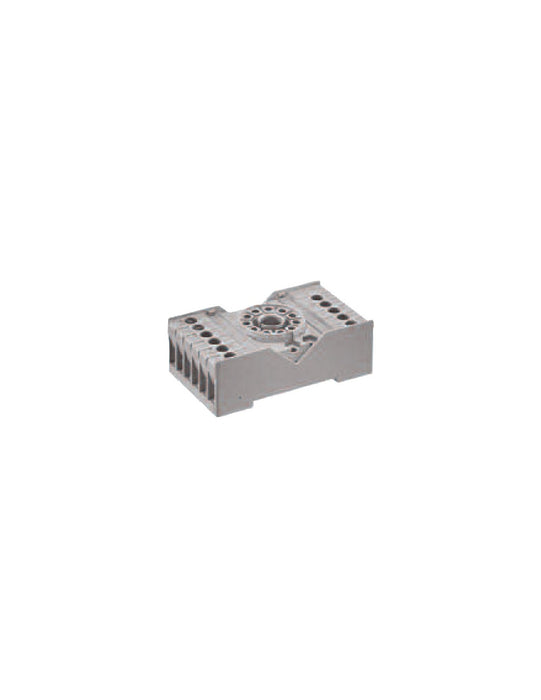

PZ11 Plug-In Relay Socket for R15 3PDT Series

Standard Features

  • Plug-In relay socket designed for R15 3PDT series relays
  • Screw terminal connections for secure and reliable wiring
  • Suitable for 35 mm DIN rail or panel mounting applications
  • Rated up to 10 A, 250 V AC
  • Three-pole configuration
  • Terminal tightening torque: 0.7 Nm

Specifications

Part Number PZ11
Rated Voltage 250 V AC
Compatible Relay Series R15 3PDT
Terminal Type Screw terminals
Max. Terminal Tightening Torque 0.7 Nm
Mounting Type 35 mm DIN Rail or Panel Mount
DIN Rail Standard PN-EN 60715

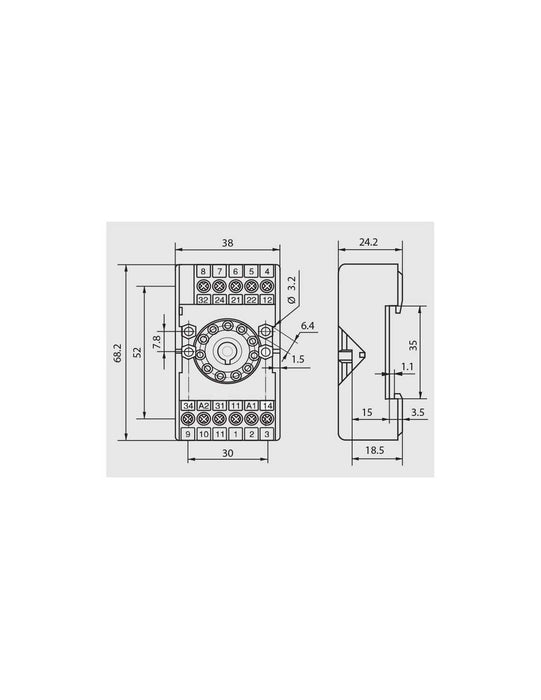

Dimensions (accessory) 68.2 x 38 x 24.2 mm
Number of Poles 3
Contact Rating 10A
Standard Pack 10
