Altech PIR6WB-1PS-6VDC-R SPDT(R), 6A, Subminiature Electromagnetic Relay

Altech PIR6WB-1PS-6VDC-R SPDT(R), 6A, Subminiature Electromagnetic Relay

SKU PIR6WB-1PS-6VDC-R
by Altech
$44.72 - $44.72
$44.72
$44.72 - $44.72
$44.72
Availability:
In stock

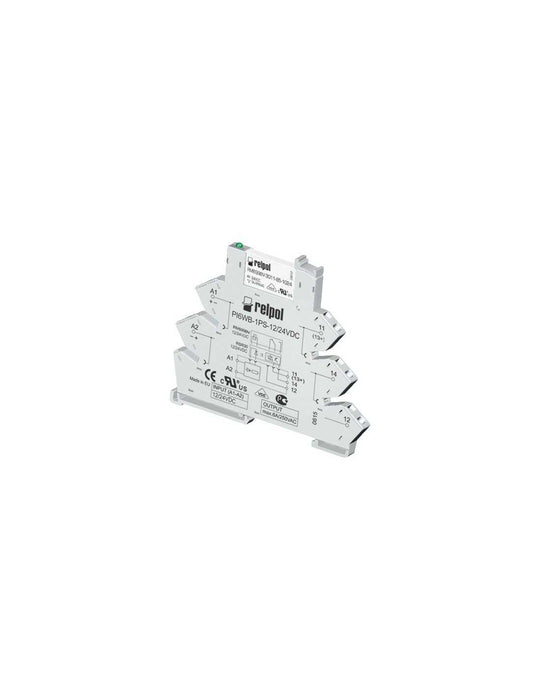

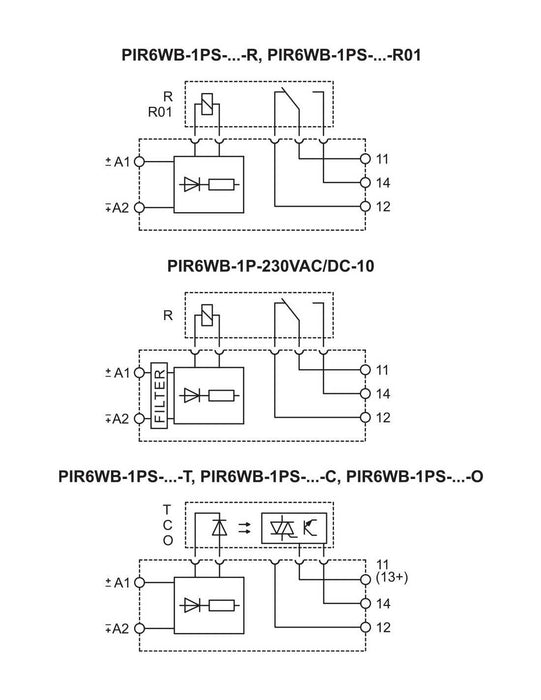

PIR6WB-1PS Subminiature Electromagnetic Relay

Featuring Electromagnetic Relay RM699BV / 6A; 250VAC / 24VDC

Standard Features

  • Spring Clamp Terminals
  • Electronic spring terminals socket (PI6W-1PS)
  • Electromagnetic relay (RM699BV) or solid-state relay (RSR30)
  • Width 6.2 mm
  • Equipped with green LED

Specifications

Part Number PIR6WB-1PS-6VDC-R
Number and type of contacts SPDT (R)
Contact material AgSnO2
Rated / max. switching voltage AC 400 V AC / 250 V DC
Min. switching voltage 10 V
Rated load (capacity) AC1 6 A / 250 V AC
Rated load (capacity) DC1 6 A / 24 V DC; 0.15 A / 250 V DC
Min. switching current 100 mA
Max. inrush current 10 A 20 ms
Rated current 6A
Max. breaking capacity AC1 1500 VA
Min. breaking capacity 1 W
Contact resistance ≤ 100 mΩ 100 mA. 24 V
Max. operating frequency at rated load AC1 360 cycles/hour
Max. operating frequency - No load 72000 cycles/hour
Must release voltage AC: ≥ 0.2 Un; DC: ≥ 0.1 Un
Rated power consumption DC: 0.2 ... 0.5 W, AC/DC: 0.5...1.2VA/0.4...1.2W
Insulation rated voltage 250 V AC
Rated surge voltage 4000 V 1.2 / 50 µs
Overvoltage category III
Insulation pollution degree 3
Dielectric strength contact clearance 1000 V AC 50/60 Hz. 1 min.. output R and R-01
Operating time (typical value) DC: 8 ms AC/DC: 20 ms
Release time (typical value) DC: 10 ms AC/DC: 25 ms
Electrical life- resistive AC1 0.5 x 10^5; 6 A. 250 V AC
Mechanical life (cycles) greater than 10⁷

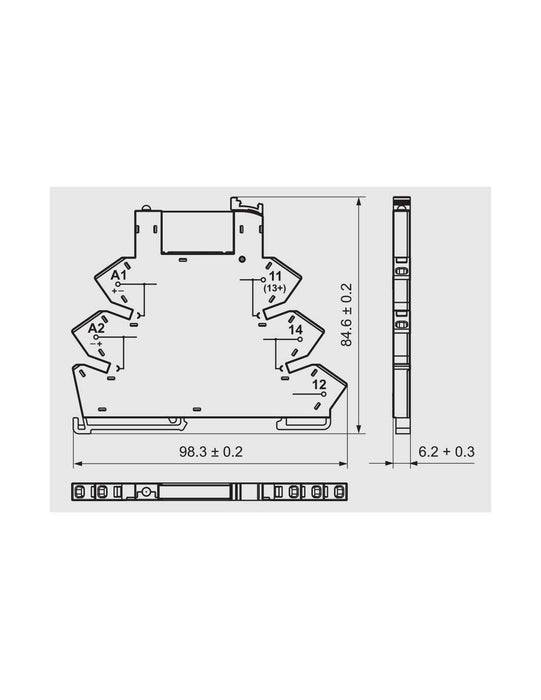

Dimensions (L x W x H) 98.5 x 6.2 x 84.6 mm
Weight 55 g
Storage Temperature -40...+70 °C
Operating Temperature -40...+55 °C
Protection Category IP 20 PN-EN 60529
Environmental Protection RTI PN-EN 116000-3
Shock resistance (NO/NC) 10 g
Vibration resistance 5 g 10...500 Hz
Rated input voltage Un 6 V DC
Power of input circuit 0.3 W
Socket code PI6WB-1PS-6VDC
Operational Relay Code RM699BV-3011-85-1005
Rated Voltage of Operational Relay Us 5 V DC
Dielectric strength Input - output 6000 V 1.2 / 50 μs
Dielectric strength Input - output (type of insulation: reinforced) 4000 V AC 50/60 Hz. 1 min..
Input - output distance clearance / creepage ≥ 6 mm / ≥ 8 mm
Operating range of supply voltage 0.8...1.2 Un; 0.85...1.2 Un 6 V DC
Must operate voltage ≤ 0.8 Un; ≤ 0.85 Un 6 V DC
Relay Type PIR6WB-1PS
Standard Pack 10
