Altech PIR6WB-1PS-42VAC/DC-T SPST(1NO), 2A, Solid State Triac (T) Relay

Altech PIR6WB-1PS-42VAC/DC-T SPST(1NO), 2A, Solid State Triac (T) Relay

SKU PIR6WB-1PS-42VAC/DC-T
by Altech
$55.12 - $55.12
$55.12
$55.12 - $55.12
$55.12
Availability:
In stock

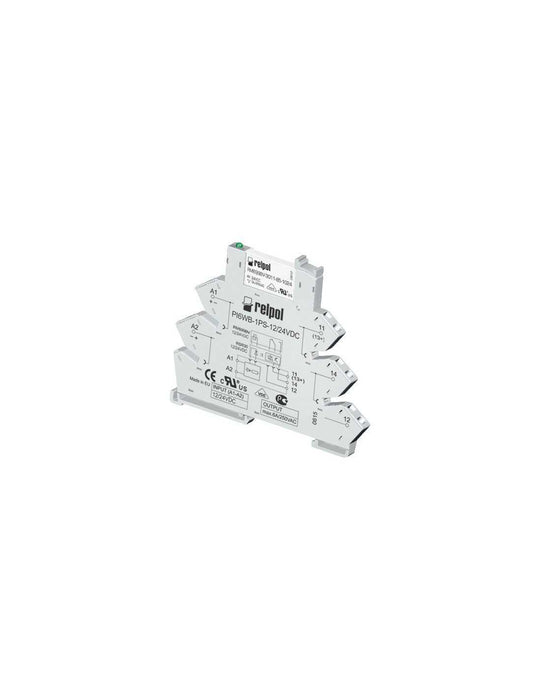

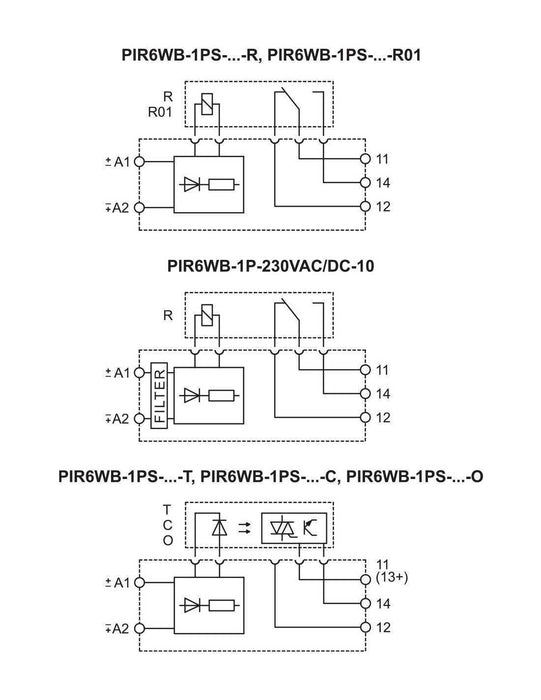

PIR6WB-1PS Solid State Triac Relay

Featuring Solid State Triac (T) Relay RSR30 / 2A; 240VAC Output

Standard Features

  • Spring Clamp Terminals
  • Electronic spring terminals socket (PI6W-1PS)
  • Electromagnetic relay (RM699BV) or solid-state relay (RSR30)
  • Width 6.2 mm
  • Equipped with green LED

Specifications

Part Number PIR6WB-1PS-42VAC/DC-T
Number and type of contacts SPST (1NO)
Must release voltage AC: ≥ 0.2 Un; DC: ≥ 0.1 Un
Rated power consumption DC: 0.2 ... 0.5 W, AC/DC: 0.5...1.2VA/0.4...1.2W
Insulation rated voltage 250 V AC
Rated surge voltage 4000 V 1.2 / 50 µs
Overvoltage category III
Insulation pollution degree 3
Dielectric strength contact clearance 1000 V AC 50/60 Hz. 1 min.. output R and R-01
Operating time (typical value) DC: 100 µs; AC/DC: 10 ms
Release time (typical value) DC: 1/2 cycle + 1 ms; AC/DC: 30 ms
Electrical life- resistive AC1 0.5 x 10^5; 6 A. 250 V AC
Mechanical life (cycles) greater than 10⁷

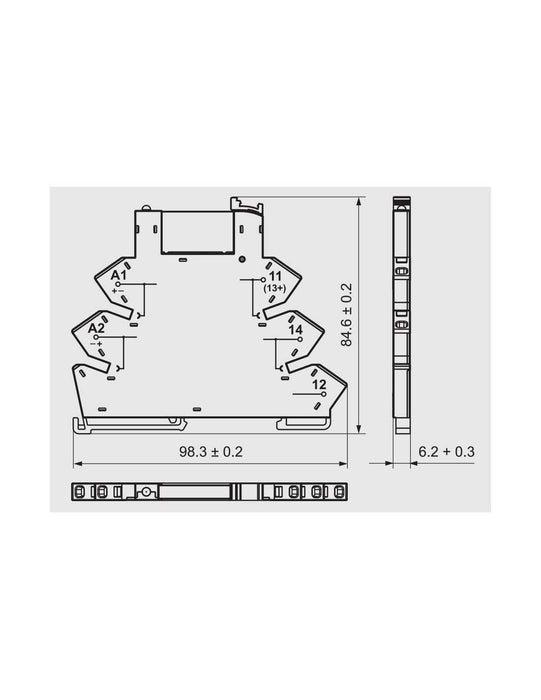

Dimensions (L x W x H) 98.5 x 6.2 x 84.6 mm
Weight 55 g
Storage Temperature -40...+70 °C
Operating Temperature -20...+55 °C
Protection Category IP 20 PN-EN 60529
Environmental Protection RTI PN-EN 116000-3
Shock resistance (NO/NC) 10 g
Vibration resistance 5 g 10...500 Hz
Rated input voltage Un 42 V AC/DC
Power of input circuit 0.5 VA / 0.4 W
Socket code PI6WB-1PS-42VAC/DC
Operational Relay Code RSR30-D24-A1-24-020-1
Rated Voltage of Operational Relay Us 24 V DC
Rated continuous output current AC1: 1A
Dielectric strength Input - output 6000 V 1.2 / 50 μs
Dielectric strength Input - output (type of insulation: reinforced) 4000 V AC 50/60 Hz. 1 min..
Input - output distance clearance / creepage ≥ 6 mm / ≥ 8 mm
Operating range of supply voltage 0.8...1.2 Un; 0.85...1.2 Un 6 V DC
Must operate voltage ≤ 0.8 Un; ≤ 0.85 Un 6 V DC
Type of output (code of output) Triac (T) max. 2 A
Max./ Min. output voltage 280 V AC / 12 V AC
Min. making capacity current 50 mA
Max. off-state leakage current (rest condition) 1.5 mA
Max. on-state voltage drop on the connection (operating state) 1.2 V
Rated Voltage 240 V AC
Relay Type PIR6WB-1PS
Standard Pack 10
