Altech PIR6WB-1PS-115VAC/DC-O SPST(1NO), 2A, Solid State Transistor (O) Relay

Altech PIR6WB-1PS-115VAC/DC-O SPST(1NO), 2A, Solid State Transistor (O) Relay

SKU PIR6WB-1PS-115VAC/DC-O
by Altech
$57.18 - $57.18
$57.18
$57.18 - $57.18
$57.18
Availability:
In stock

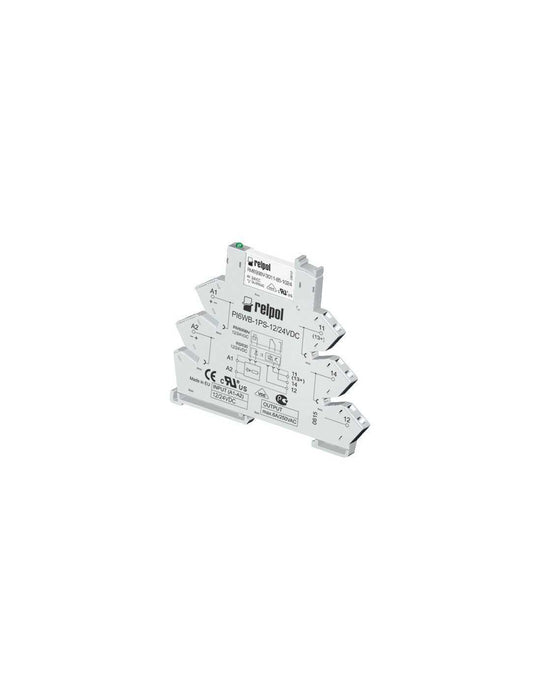

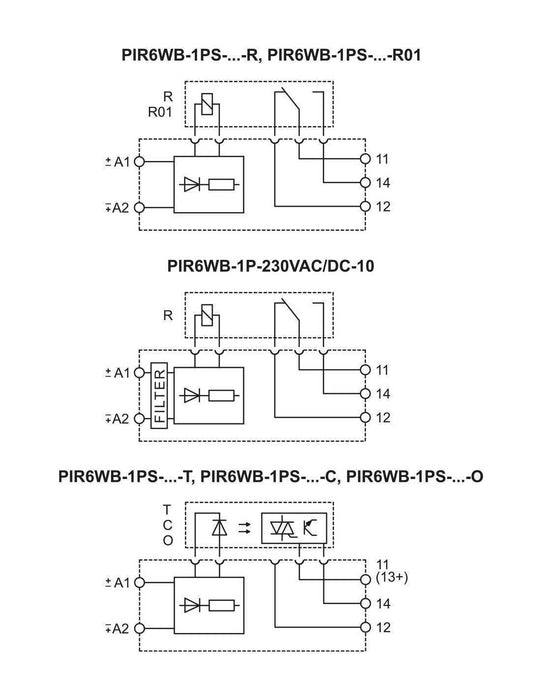

PIR6WB-1PS Solid State Transistor (O) Relay

Featuring Solid State Transistor (O) Relay RSR30 / 2A; 24VDC Output

Standard Features

  • Spring Clamp Terminals
  • Electronic spring terminals socket (PI6W-1PS)
  • Electromagnetic relay (RM699BV) or solid-state relay (RSR30)
  • Width 6.2 mm
  • Equipped with green LED

Specifications

Part Number PIR6WB-1PS-115VAC/DC-O
Number and type of contacts SPST (1NO)
Must release voltage AC: ≥ 0.2 Un; DC: ≥ 0.1 Un
Rated power consumption DC: 0.2 ... 0.5 W, AC/DC: 0.5...1.2VA/0.4...1.2W
Insulation rated voltage 250 V AC
Rated surge voltage 4000 V 1.2 / 50 µs
Overvoltage category III
Insulation pollution degree 3
Dielectric strength contact clearance 1000 V AC 50/60 Hz. 1 min.. output R and R-01
Operating time (typical value) DC: 50 µs; AC/DC: 10 ms
Release time (typical value) DC: 600 µs; AC/DC: 20 ms
Electrical life- resistive AC1 0.5 x 10^5; 6 A. 250 V AC
Mechanical life (cycles) greater than 10⁷

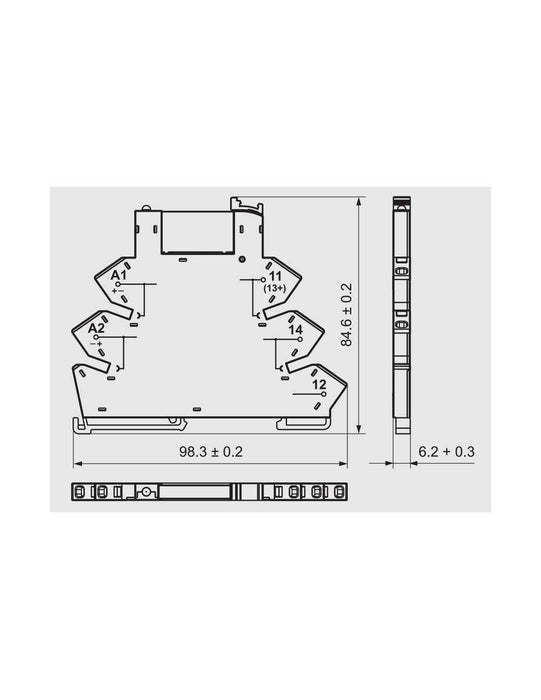

Dimensions (L x W x H) 98.5 x 6.2 x 84.6 mm
Weight 55 g
Storage Temperature -25...+70°C
Operating Temperature -20...+55 °C
Protection Category IP 20 PN-EN 60529
Environmental Protection RTI PN-EN 116000-3
Shock resistance (NO/NC) 10 g
Vibration resistance 5 g 10...500 Hz
Operating switching frequency 10 Hz
Rated input voltage Un 115 V AC/DC
Power of input circuit 1.0 VA / 1.0 W
Socket code PI6WB-1PS-115VAC/DC
Operational Relay Code RSR30-D24-D1-02-040-1
Rated Voltage of Operational Relay Us 24 V DC
Rated continuous output current DC1: 2A
Dielectric strength Input - output 6000 V 1.2 / 50 μs
Dielectric strength Input - output (type of insulation: reinforced) 4000 V AC 50/60 Hz. 1 min..
Input - output distance clearance / creepage ≥ 6 mm / ≥ 8 mm
Operating range of supply voltage 0.8...1.2 Un; 0.85...1.2 Un 6 V DC
Must operate voltage ≤ 0.8 Un; ≤ 0.85 Un 6 V DC
Type of output (code of output) Transistor (O) max. 2 A
Max./ Min. output voltage 32 V DC / 1.5 V DC
Min. making capacity current 1 mA
Max. off-state leakage current (rest condition) 1 mA
Max. on-state voltage drop on the connection (operating state) 0.24 V
Rated Voltage 24 V DC
Relay Type PIR6WB-1PS
Standard Pack 10
