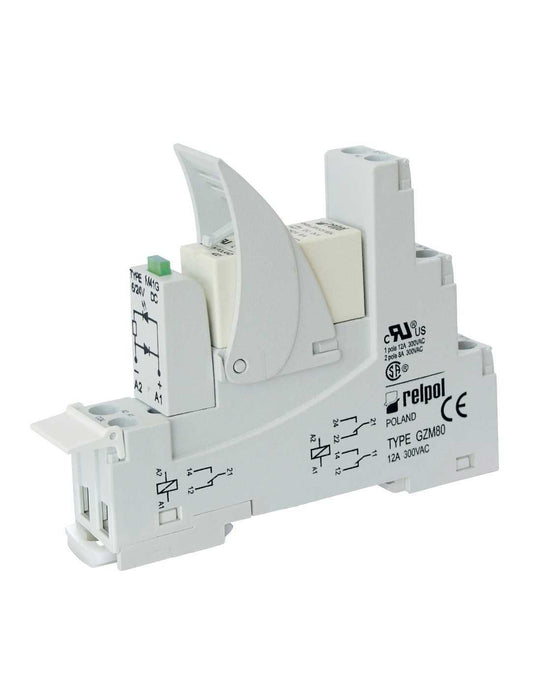

PI85 Interface Relay

GZM80 Socket - PI85 DPDT DC Coil

Standard Features

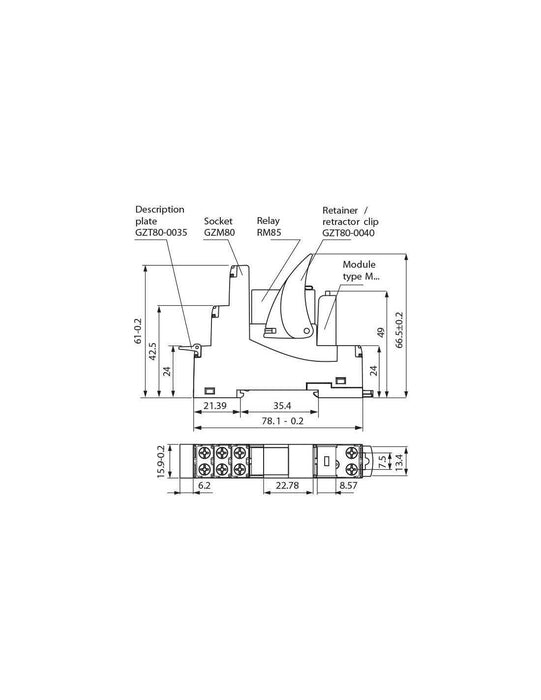

  • Interface relay PI85 with socket GTM80, designed for continuous operation, consists of: electromagnetic relay RM85, grey plug-in socket GZM80, signalling / protecting module type M..., retainer / retractor clip GZT80-0040 (plastic), white description plate GZT80-0035
  • Pre-assembled relay and socket combination simplifies installation and replacement
  • Compact industrial design saves panel space
  • 35 mm rail mount acc. to EN 60715 or on panel mounting with one M3 screw
  • Compatible with signaling, protection, and interconnection accessories for flexible system integration
  • Available with sealed IP67 relay protection and cadmium-free contacts
  • May be linked with interconnection strip type ZGGZ80

Specifications

Part Number PI85-024DC-00LD
Coil Voltage (V) 24
Coil Type DC
Coil resistance at 20 °C in Ω 1440
Coil operating range max. (at 55°C) 61.2
Coil operating range min. (at 20°C) 16.8
Type of Module M41G
Current 16A
Voltage 250V AC / 24V DC
Wire Range 2.5 mm2 / 24-14 AWG
Torque 0.7 Nm
Relay Type PI85
Standard Pack 20
