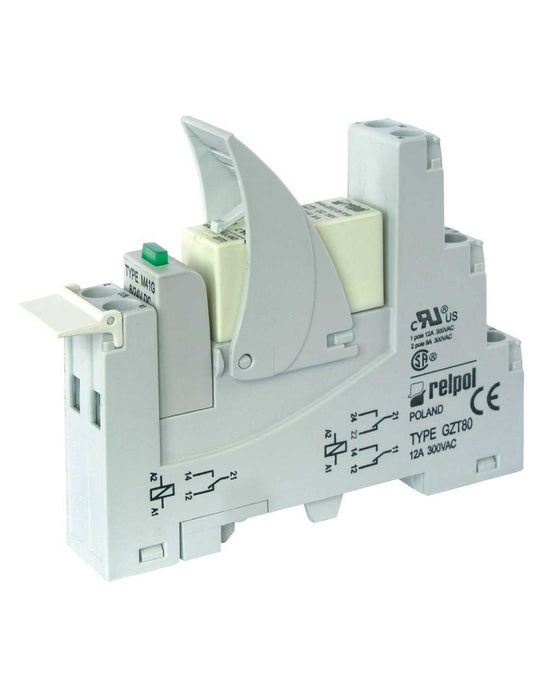

PI84 Interface Relay

GZT80 Socket - PI84 DPDT AC 50/60Hz Coil

Standard Features

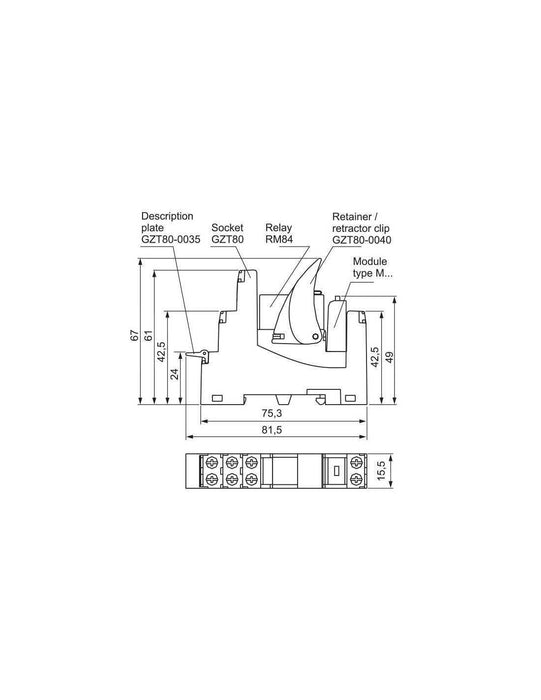

  • Interface relay PI84 with socket GTZ80, designed for continuous operation, consists of: electromagnetic relay RM84, grey plug-in socket GZT80, signalling / protecting module type M..., retainer / retractor clip GZT80-0040 (plastic), white description plate GZT80-0035
  • Pre-assembled relay and socket combination simplifies installation and replacement
  • Compact industrial design saves panel space
  • 35 mm rail mount acc. to EN 60715 or on panel mounting with one M3 screw
  • Compatible with signaling, protection, and interconnection accessories for flexible system integration
  • Available with sealed IP67 relay protection and cadmium-free contacts
  • May be linked with interconnection strip type ZGGZ80

Specifications

Part Number PI84-120AC-M93G
Coil Voltage (V) 120
Coil Type AC 50/60Hz
Coil resistance at 20 °C in Ω 10200
Coil operating range max. (at 55°C) 144
Coil operating range min. (at 20°C) 96
Type of Module M93G
Current 8A
Voltage 250V AC / 24V DC
Wire Range 2.5 mm2 / 24-14 AWG
Torque 0.7 Nm
Relay Type PI84
Standard Pack 20
