GZM4 Plug-In Relay Socket for R4 Series

Standard Features

  • Plug-in relay socket designed for R-series industrial relays
  • Screw terminal connections for secure and reliable wiring
  • Suitable for 35 mm DIN rail or panel mounting applications
  • Rated up to 6 A, 300 V AC
  • Four-pole configuration
  • Compatible with relay retention, labeling, and accessory modules

Specifications

Part Number GZM4
Rated Voltage 300 V AC
Compatible Relay Series R4
Terminal Type Screw terminals
Max. Terminal Tightening Torque 0.7 Nm
Mounting Type 35 mm DIN Rail or Panel Mount
DIN Rail Standard PN-EN 60715

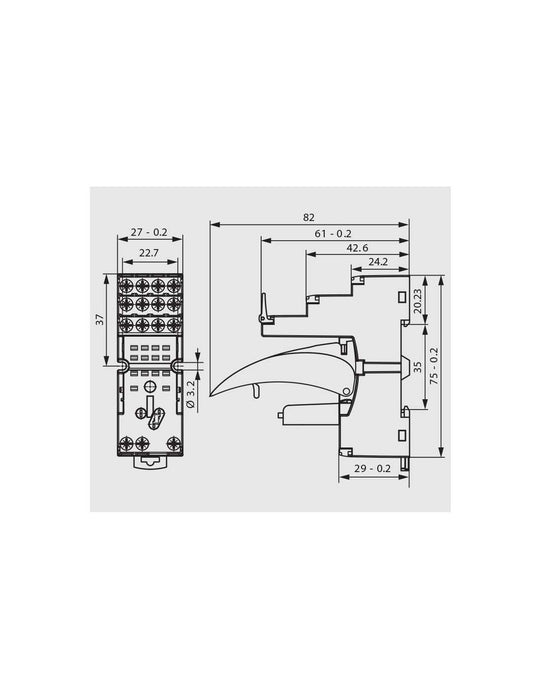

Dimensions (accessory) 75 x 27 x 61(82) mm
Number of Poles 4
Contact Rating 6A
Standard Pack 10
