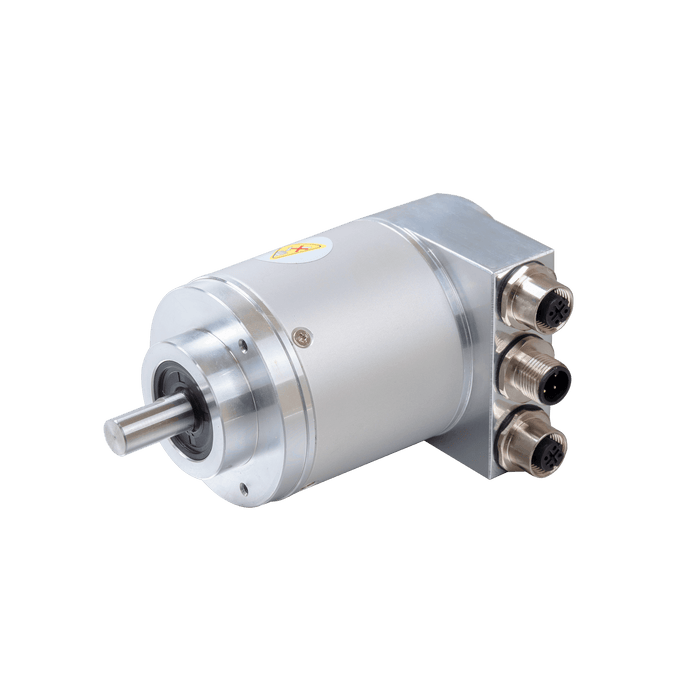

Absolute multiturn encoder, Series EAM58-ENND, 36 mm clamping flange, Shaft length 20 mm, Shaft 10g6 mm, 10...30 VDC, EtherNet/IP interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

EAM58C10-BF6XTR-4096/8192ENND

SKU EAM58C10-BF6XTR-4096/8192ENND
by ELCO Industrial Automation

Absolute multiturn encoder, Series EAM58-ENND, 36 mm clamping flange, Shaft length 20 mm, Shaft 10g6 mm, 10...30 VDC, EtherNet/IP interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

$1,091.17 - $1,091.17
$1,091.17
$1,091.17 - $1,091.17
$1,091.17
Availability:
In stock

Absolute multiturn encoder, Series EAM58-ENND, 36 mm clamping flange, Shaft length 20 mm, Shaft 10g6 mm, 10...30 VDC, EtherNet/IP interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

Specifications

Flange type Clamping flange
Shock resistance 50 g, 11 ms
Vibration resistance 10 g, 10 ... 2000 Hz
Shaft diameter 10 mm
Max load capacity of the shaft 80 N Axial160 N Radial
Moment of inertia 1.8 x 10-6 kgm2
Starting torque ＜ 0.05 Nm
Relative humidity/condensation 90 % Condensation not permitted

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
UL UL_E_EAB-EAC-EAM-PAM_V1.0_EN.pdf
Datasheet DS_E_EAM58-ENND_V1.0_EN.pdf
3D Drawing CAD_E_EAM58C10-BF6XTR-xxxx-xxxxENND_V1.0.stp
Manual UM_E_EAM58-ENSC(ENND)_V1.0_EN&CN.pdf
Configuration file Config_E_EAM58-ENND(ENOM)_V1.0.zip
